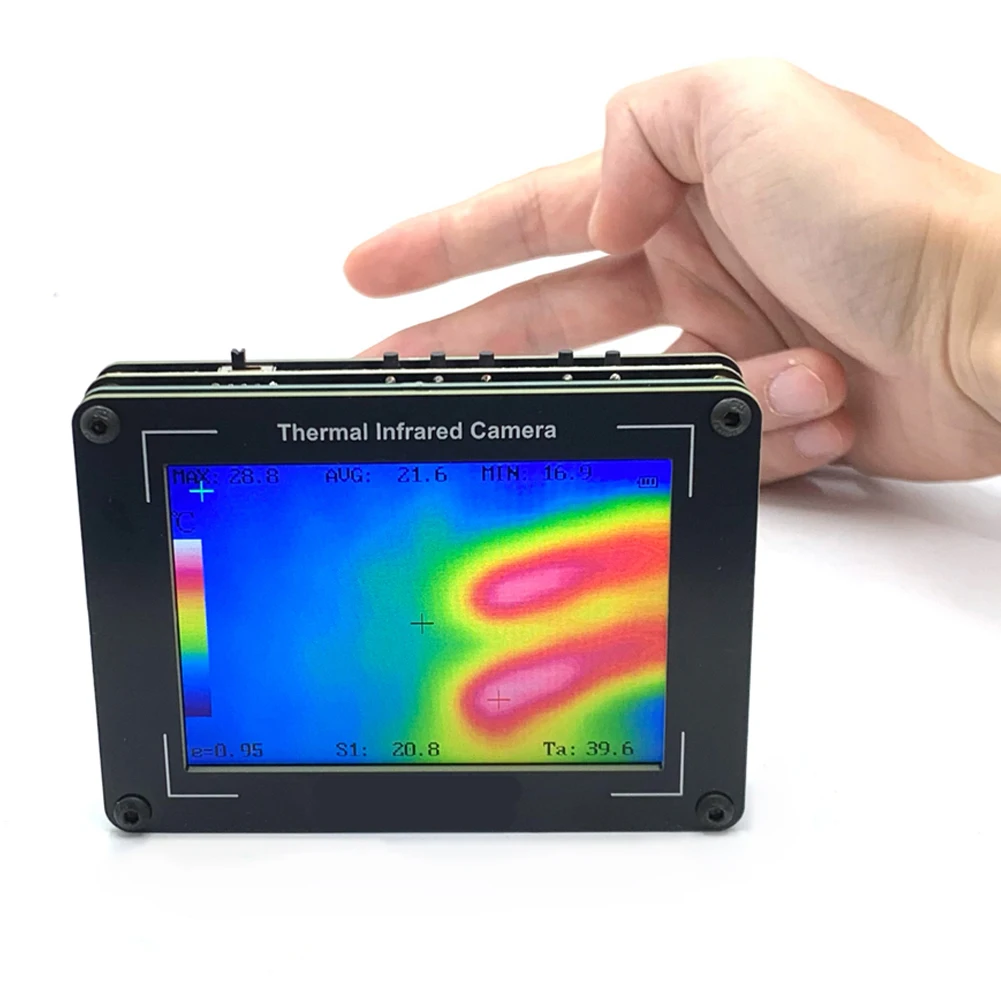

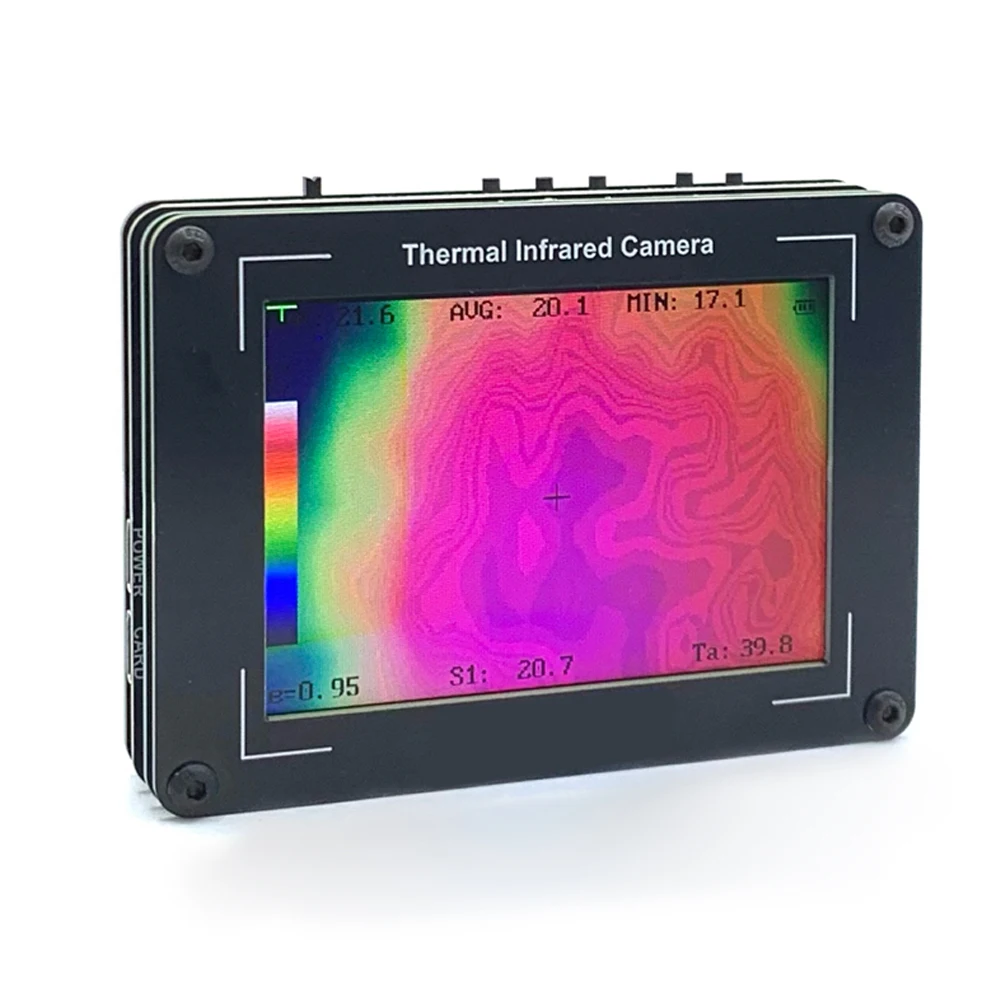

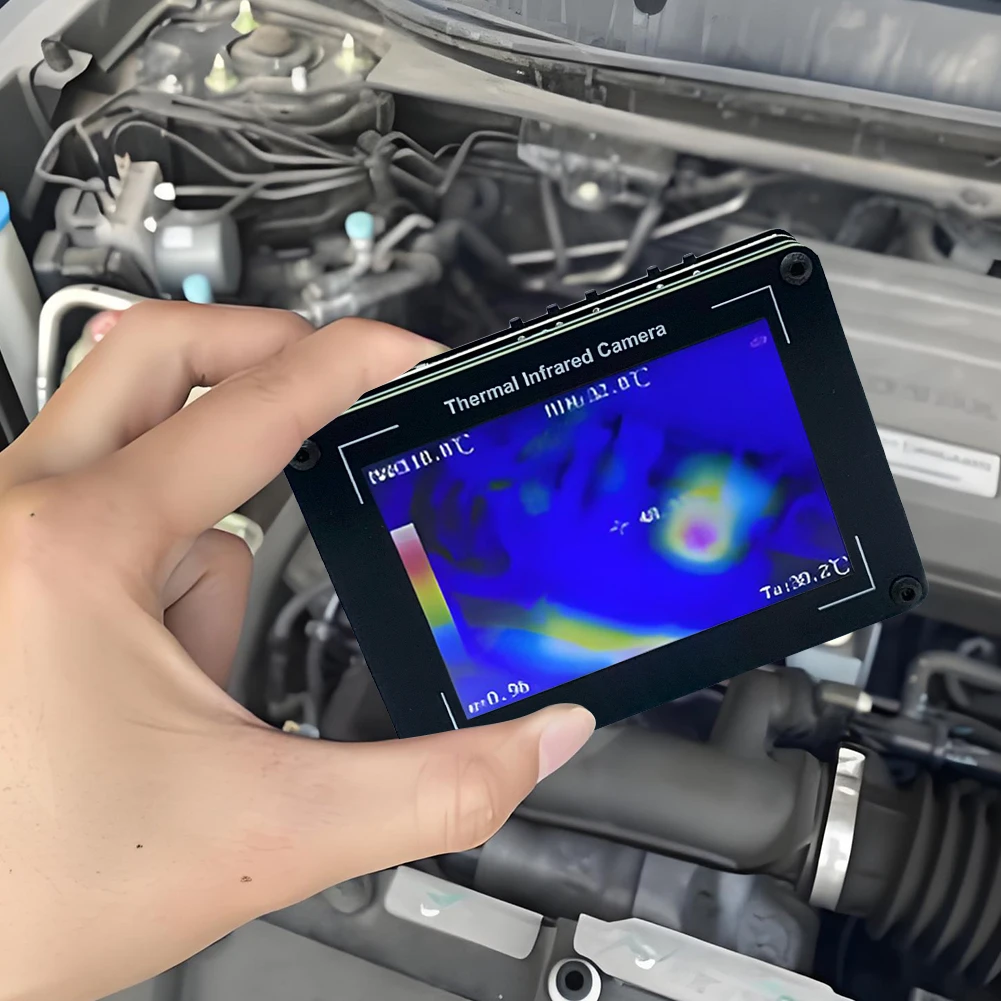

3.5 Inch Thermal Infrared Camera -40-450℃ Measurement 32x24 Pixel Thermal Imaging Camera Infrared Thermal Imager for Inspection Electrical/Mechanical Building
Feature:

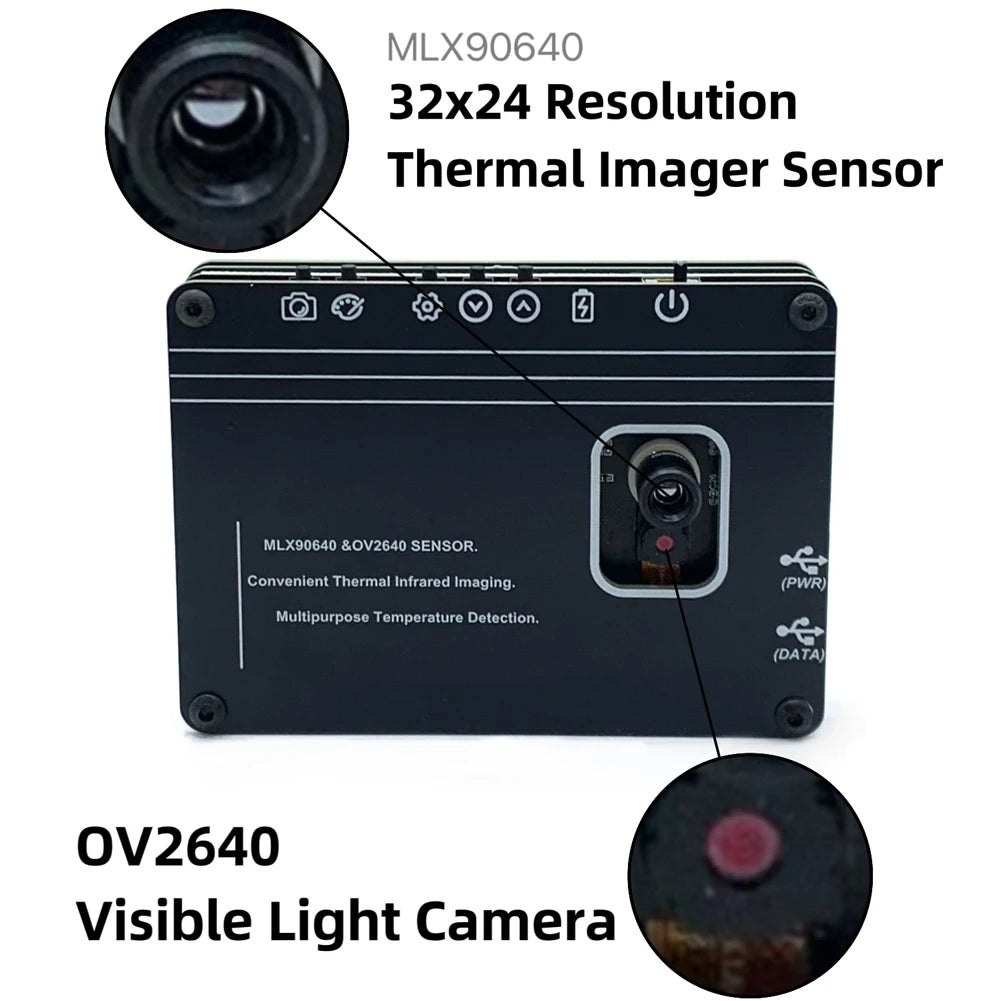

1.Professional thermal imaging technology: This high-performance infrared thermal imager is equipped with the advanced MLX90640ESF-BAB infrared sensor and OV2640 visible light camera, providing clear thermal images for various applications.
2.High-resolution display: The infrared imager features a 32*24 pixel far-infrared array and a 480*320 pixel 3.5-inch TFT LCD screen, ensuring clear image details for diverse inspection needs.

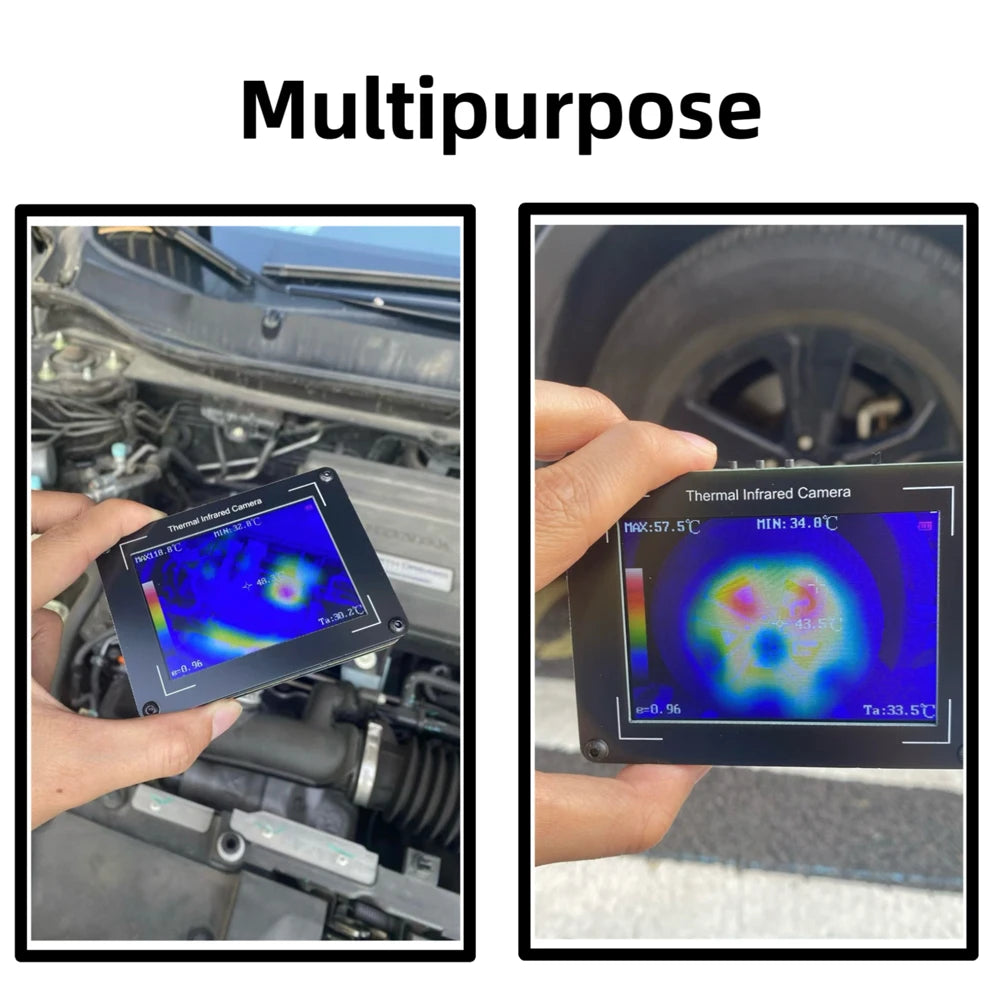

3.Wide temperature measurement range: Capable of measuring temperatures from -40°C to 450°C with an accuracy of ±2°C, making it ideal for industrial, construction, and environmental monitoring scenarios.

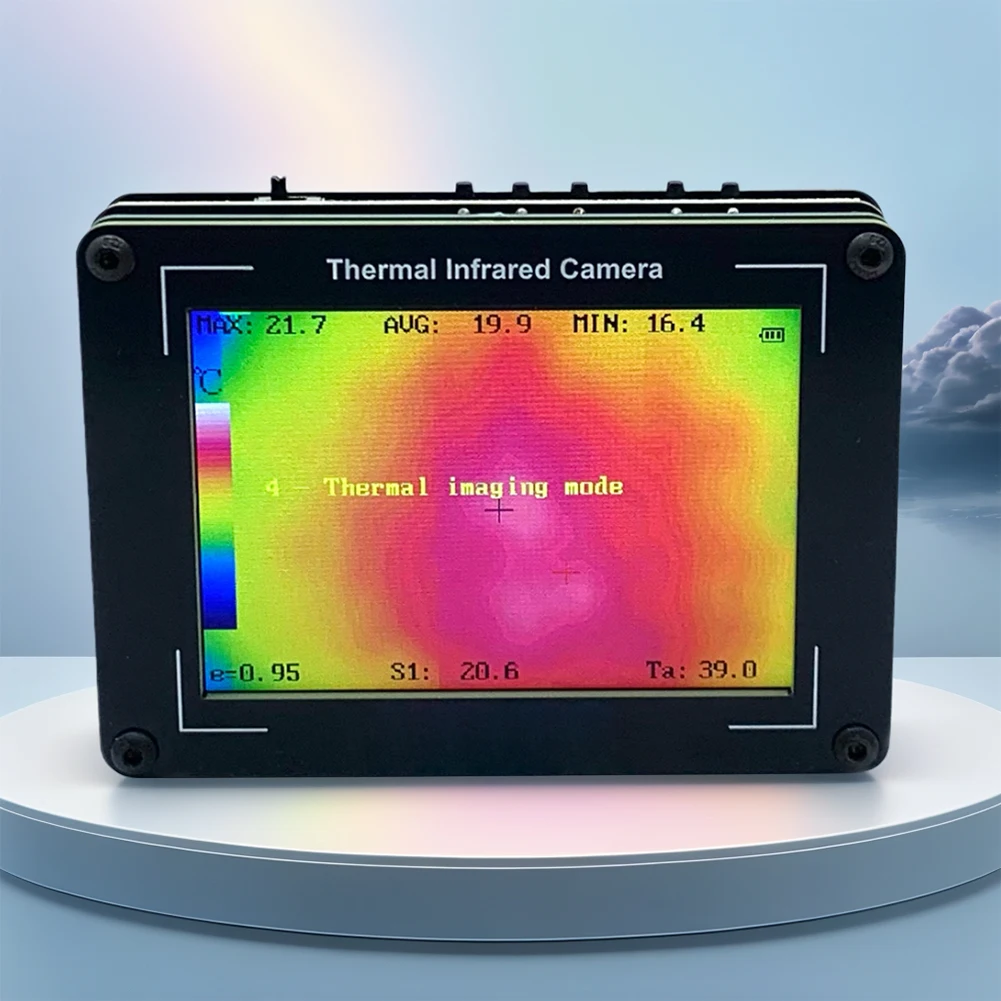

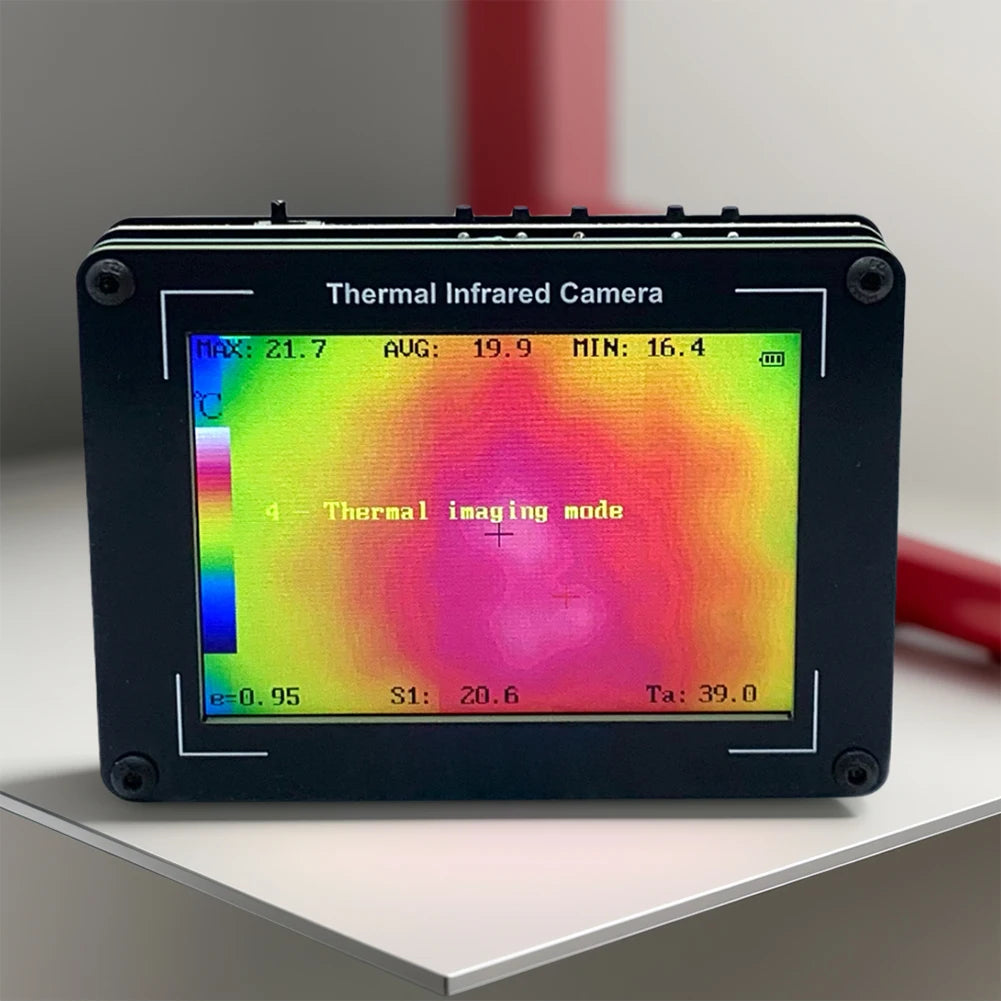

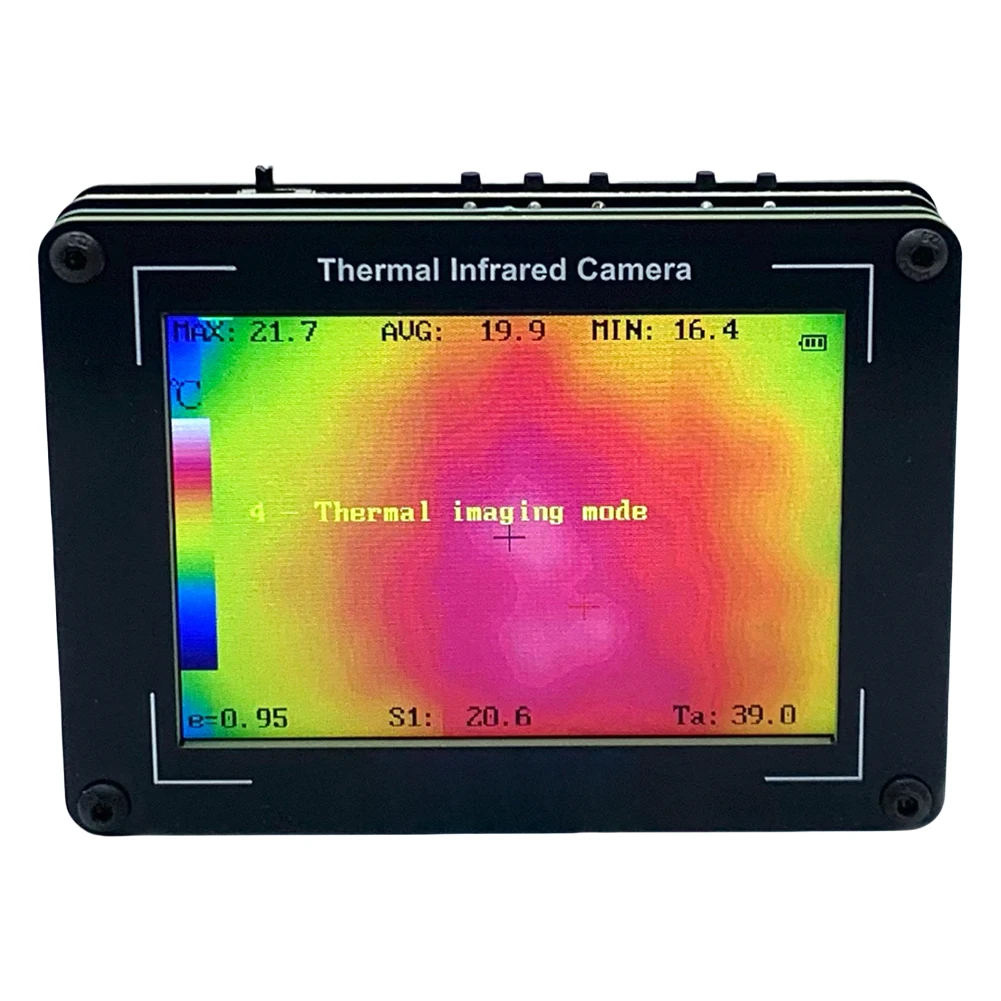

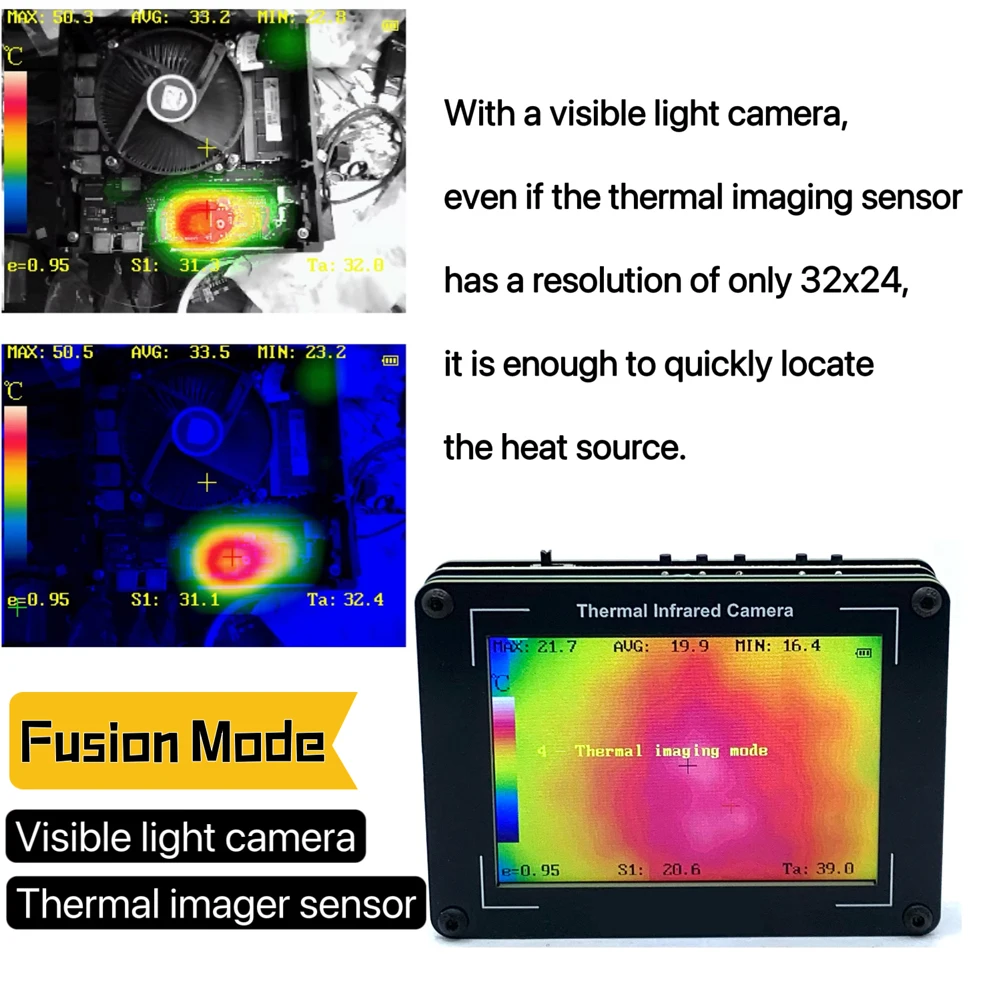

4.Multiple display modes: Offers four display modes (semi-overlay, overlay, visible light, and thermal imaging), allowing you to switch as needed for optimal visualization in different settings.

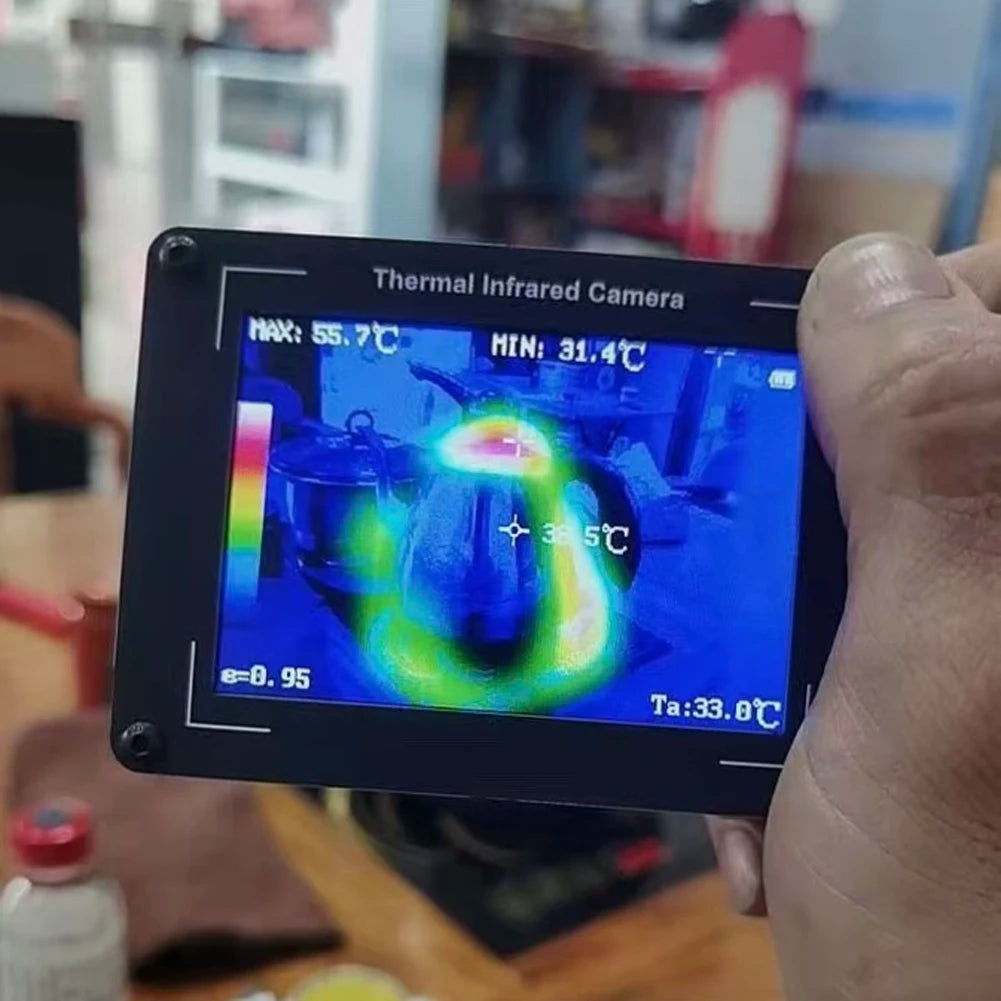

5.Intelligent temperature tracking: Automatically tracks maximum and minimum temperatures, with fixed center target temperature cursor displaying target object temperature, facilitating quick identification of temperature anomalies.


Specification:
Origin: Mainland China
-Infrared sensor: MLX90640ESF-BAB
-Visible light camera model: OV2640
-Hardware resolution: 32*24 pixels
-Screen resolution: 480*320 pixels
-Temperature measurement range: -40°C to 450°C
-Measurement accuracy: ±2°C
-Operating temperature: 0°C-50°C
-Refresh rate: 4Hz
-Field of view: FOV=55°*35°
-Emissivity: adjustable between 0.01 and 0.99
-Charging specifications: USB Type-C, 5V/1A
-Battery specifications: 3.7V 1800mAh lithium-ion battery
Casing material: ABS

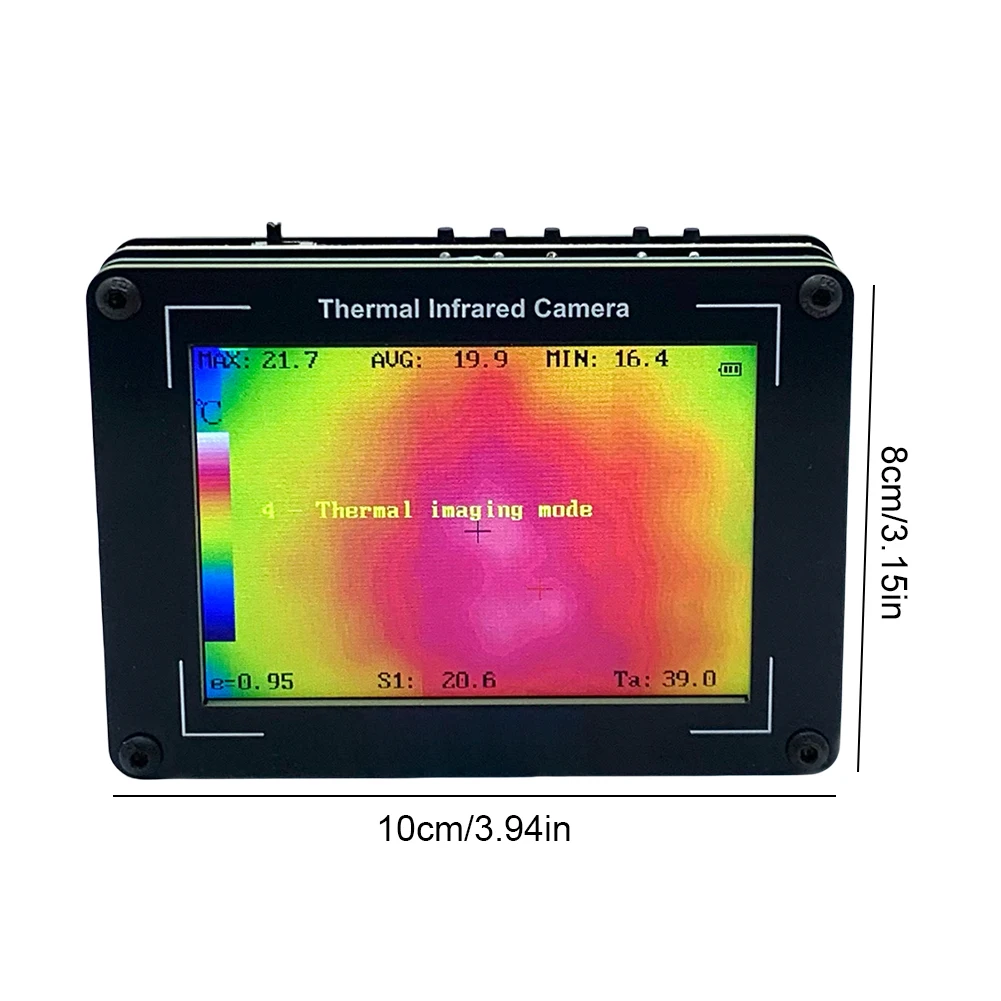

Product size: about 100.00x80.00x20.00mm
Product size: 3.94x3.15x0.79inch

Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
