Specifications

Model: Jh-55
Material: ABS, Iron, Aluminum and Alloy Steel
Color: Red/Blck
Power Source: Gasoline Powered
Starter System: Hand Pull Start
Engine Type: 36*32mm/1.41*1.25in, Single Cylinder, Air Cooling, 2-Stroke
One Function Tool Holder: Sleeve
Impact Frequency: 1200-2200r/Min
Impact Energy: 20-45J
Piling Head Size: φ55mm/2.16in, φ70mm/2.75in
Fuel: Oil Mixture (Gasoline:2-Stoke Engine Oil=25:1)
Fuel Capacity: 0.9L/0.23gal
Fuel Consumotion Rate: ≤0.5L/h(0.13gal/h)
Displacement: 32.6cc
Max. Power and Speed: 0.9kw/8500r/Min
Max. Torque and Speed: 1 .45N.m/5300r/Min
Product Size: 55*27*31cm/21.65*10.62*12.2in
Main Handle Size(L*W): 26*20cm/10.23*7.87in
Secondary Handle Size: 12*15cm/4.72*5.9in
Packing Size: 64.5*34*37cm/25.39*13.38*14.56in
Sleeve Length: 11cm/4.33in
Net Weight: 13kg/28.66lbs

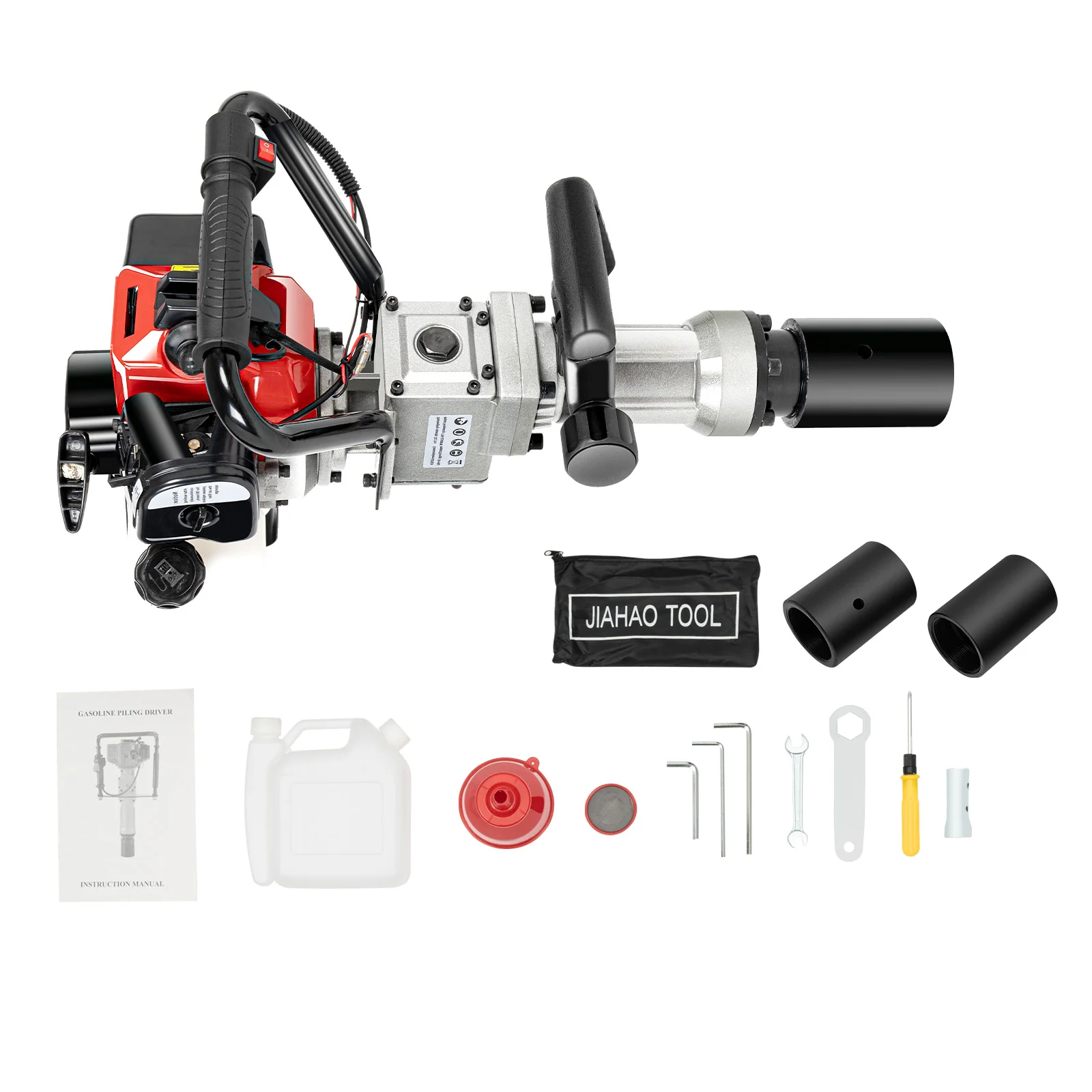

Package Included

1* Gasoline Pile Driver
2* Sleeves
1* Proportioning Pot
1* Funnel
1* Tool Bag
1* Strainer
All Needed Accessories

Description

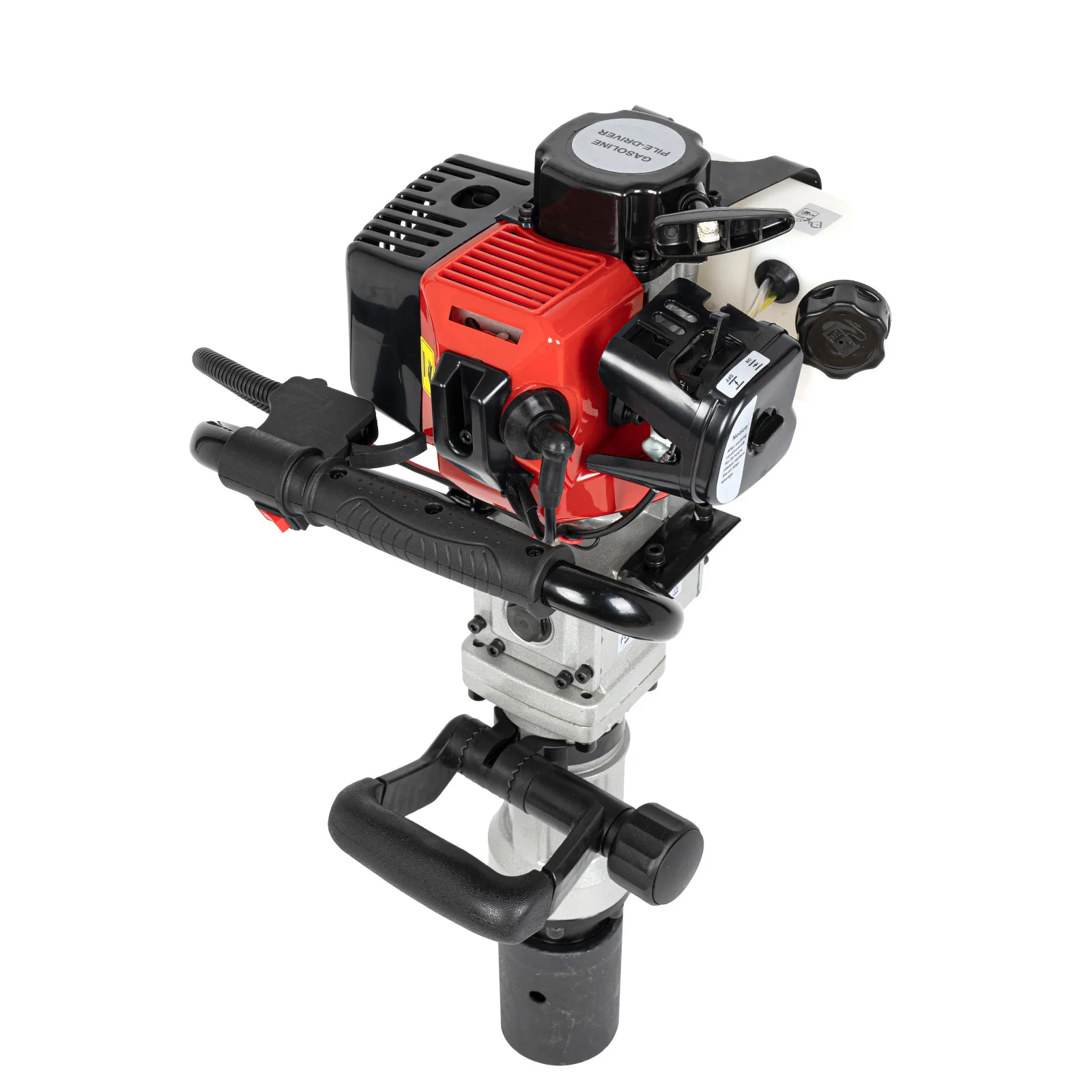

With this portable pile driver, piling will become more convenient! This pile driver is equipped with a powerful 32.6cc two-stroke gasoline engine. Its max rotational speed reaches up to 8500r/min with a power of 0.9kw, so it operates very efficiently. It will be your good helper.

Details

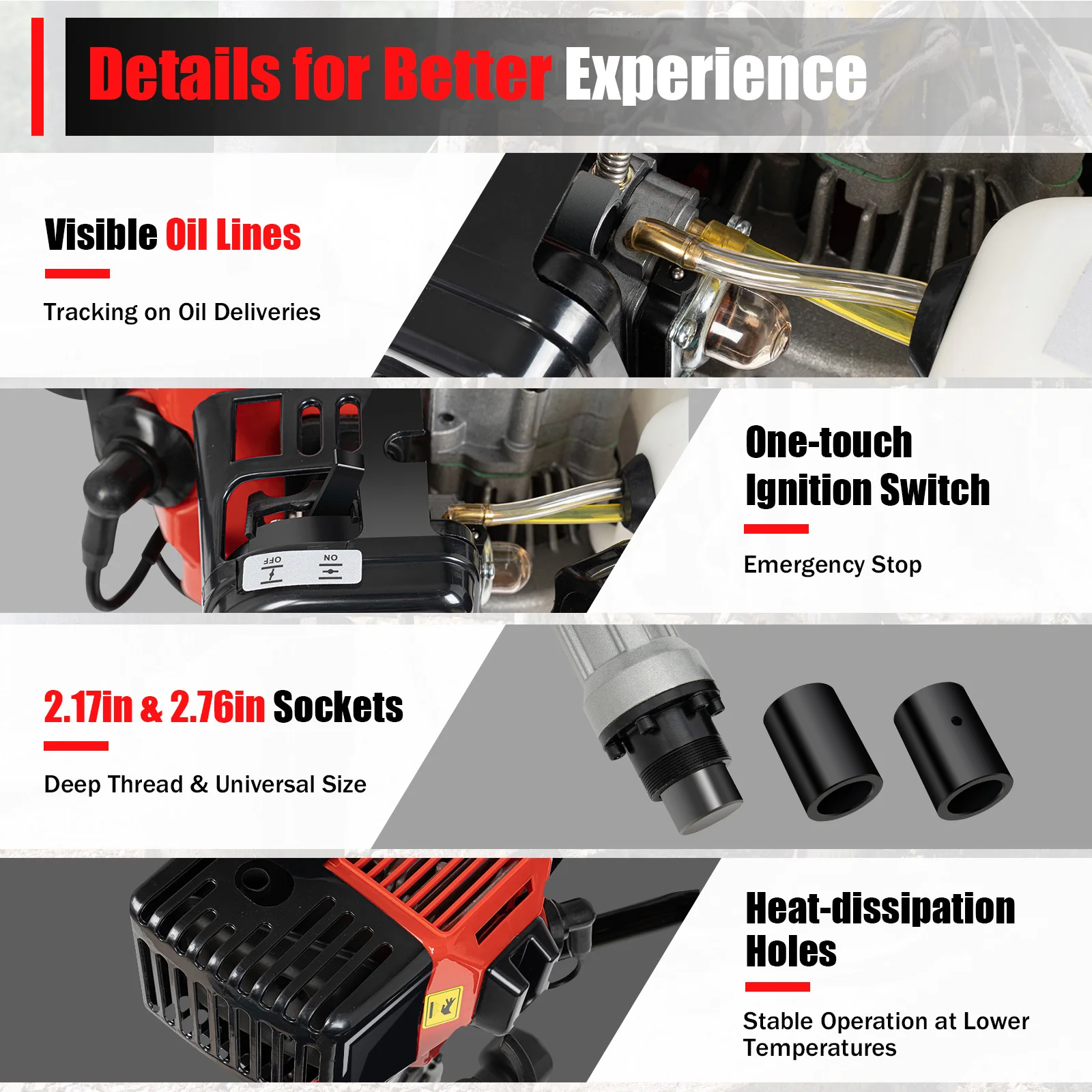

Two Sleeves: Two different sleeve sizes allow for a wider range of applications. The threaded connection makes it easier to change.

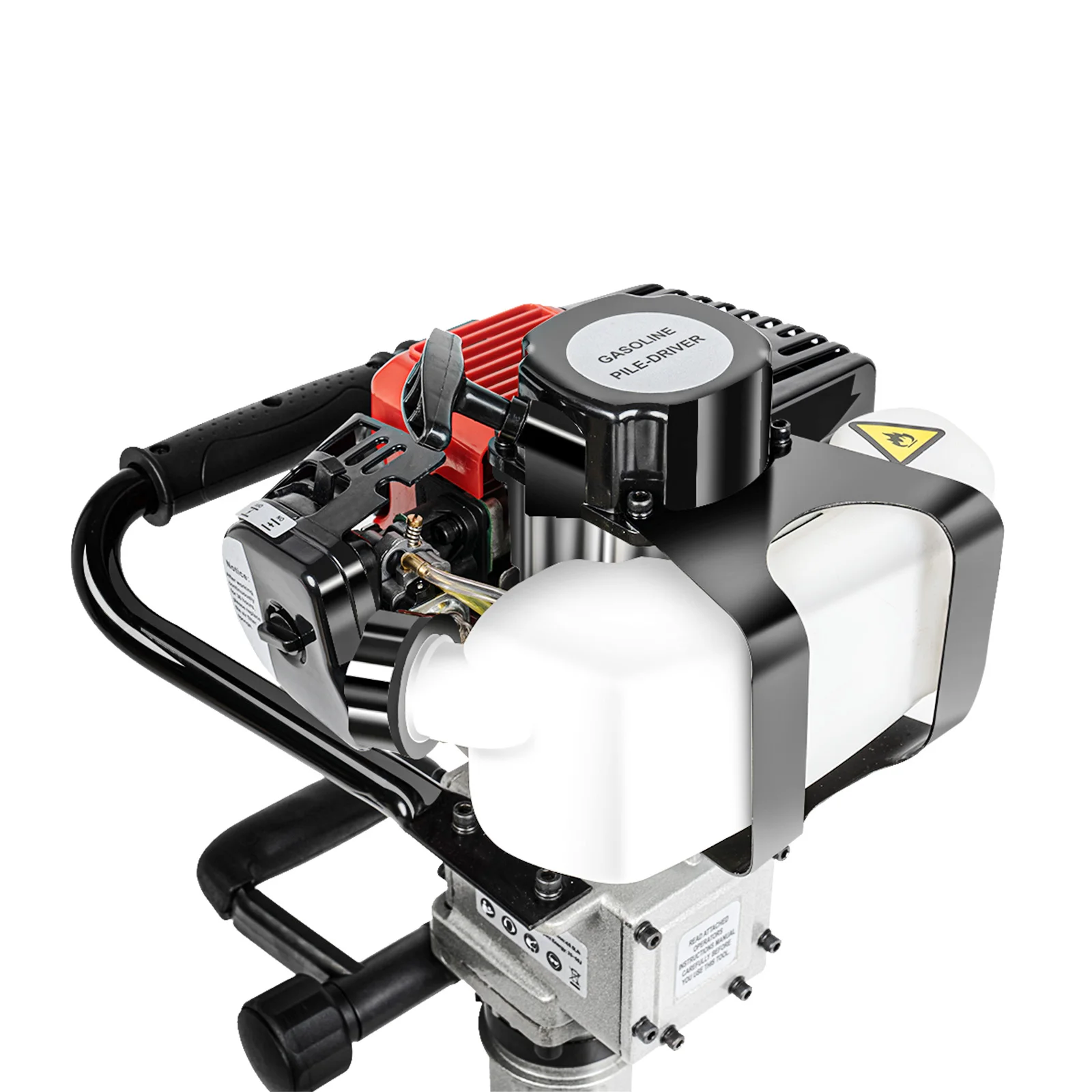

Fuel Tank: The large 0.23gal translucent fuel tank avoids frequent refuelling and makes it easy to keep an eye on fuel usage.

Key Features

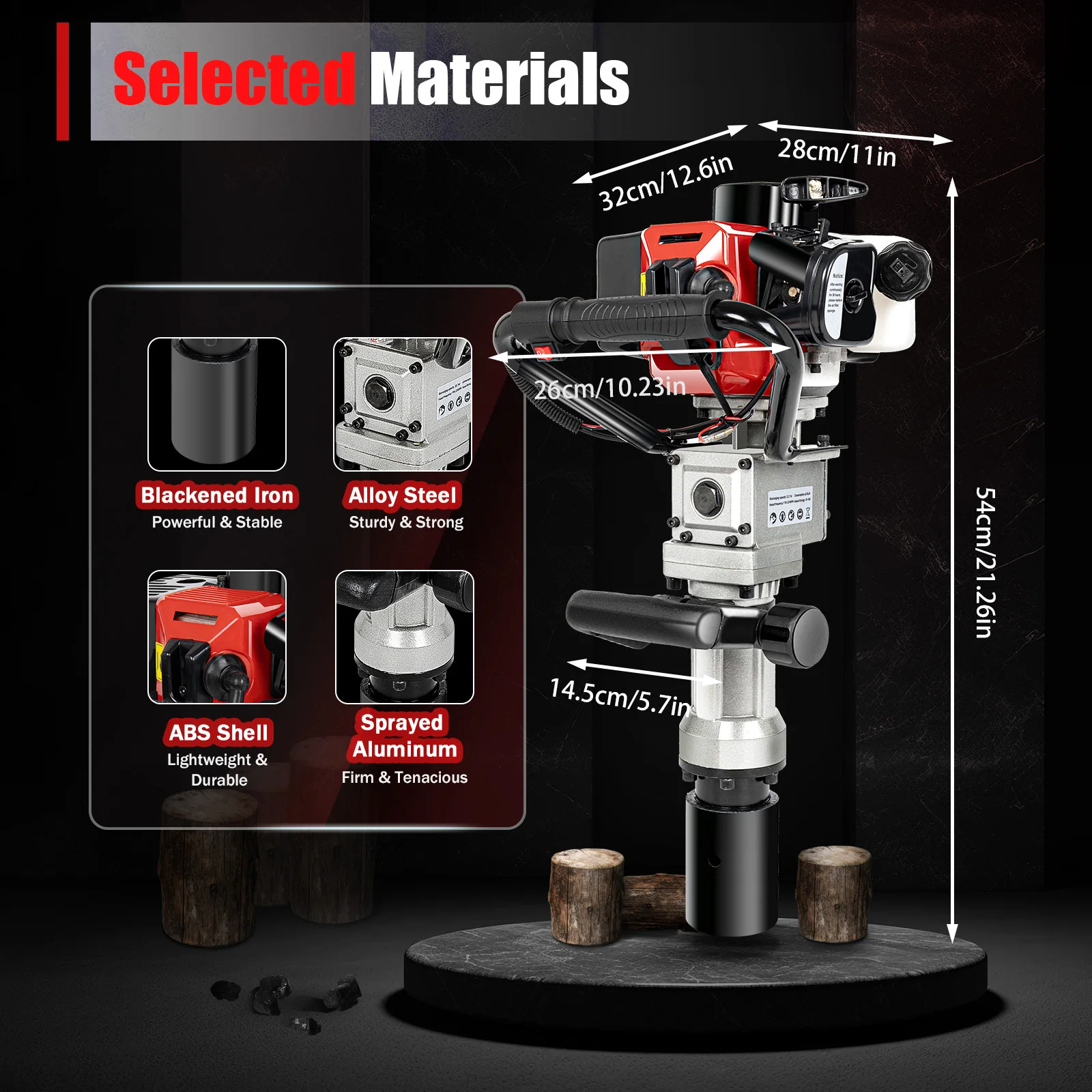

Robust and Durable: The high-quality ABS, iron, aluminum and alloy steel materials are robust and wear-resistant, scratch-resistant, impact-resistant and rustproof, ensuring a long service life and good adaptability to the working environment.

High Efficiency: The powerful 32.6cc two-stroke engine provides impact energy of up to 20-45J and impact frequency of up to 1200-2200r/min, realizing efficient handling of various piling work.

Good Heat Dissipation: Multiple cooling holes on the body provide good heat dissipation, maintaining stable performance over long periods of time.

Save Money: The high-quality carburettor allows the petrol to burn fully while driving, with a fuel consumption rate of only 0.13gal/h.

User-friendly Design: The lightweight design(28.66lbs ) is easy to carry and control. At the same time, the cordless gasoline power is cordless better for outdoor use.

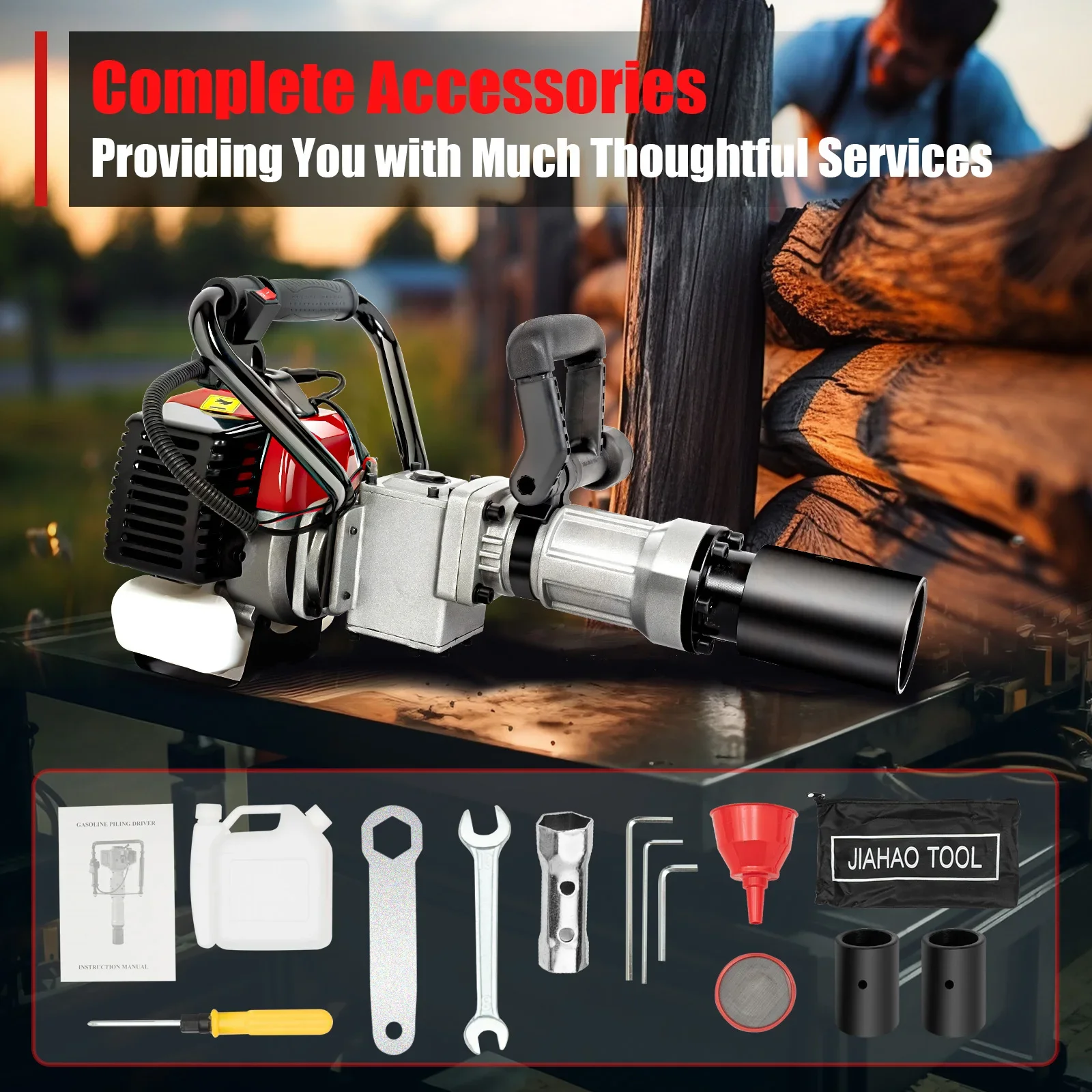

Complete Accessories: The proportioning pot, funnel, strainer and installation tool kit are included in the package for your convenience, so you don't need to buy extra.

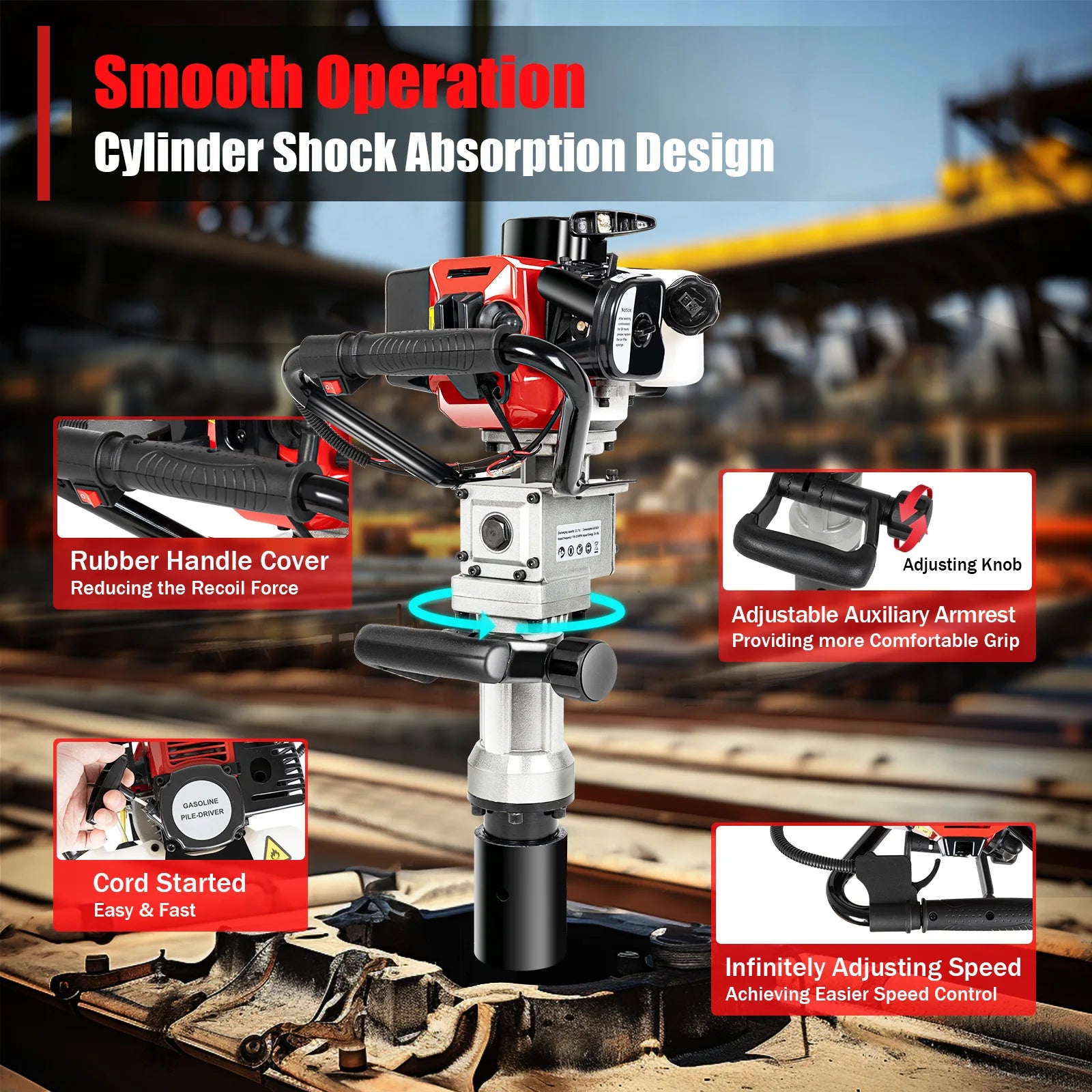

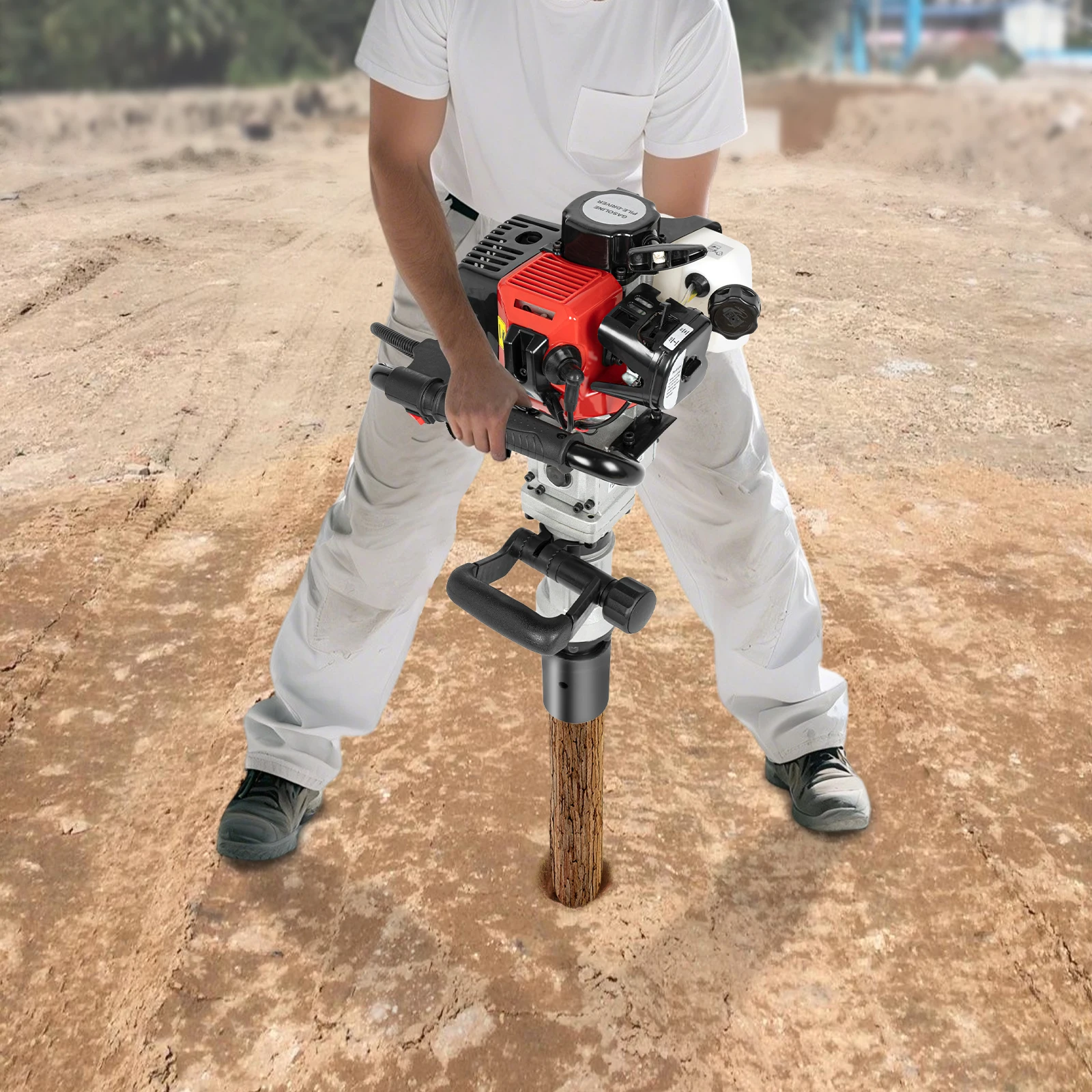

Double Handle Design: The double handle allows for a more stable operation. It is wrapped with soft sponge for a more comfortable grip as well as to prevent slippage when your hand is sweating.

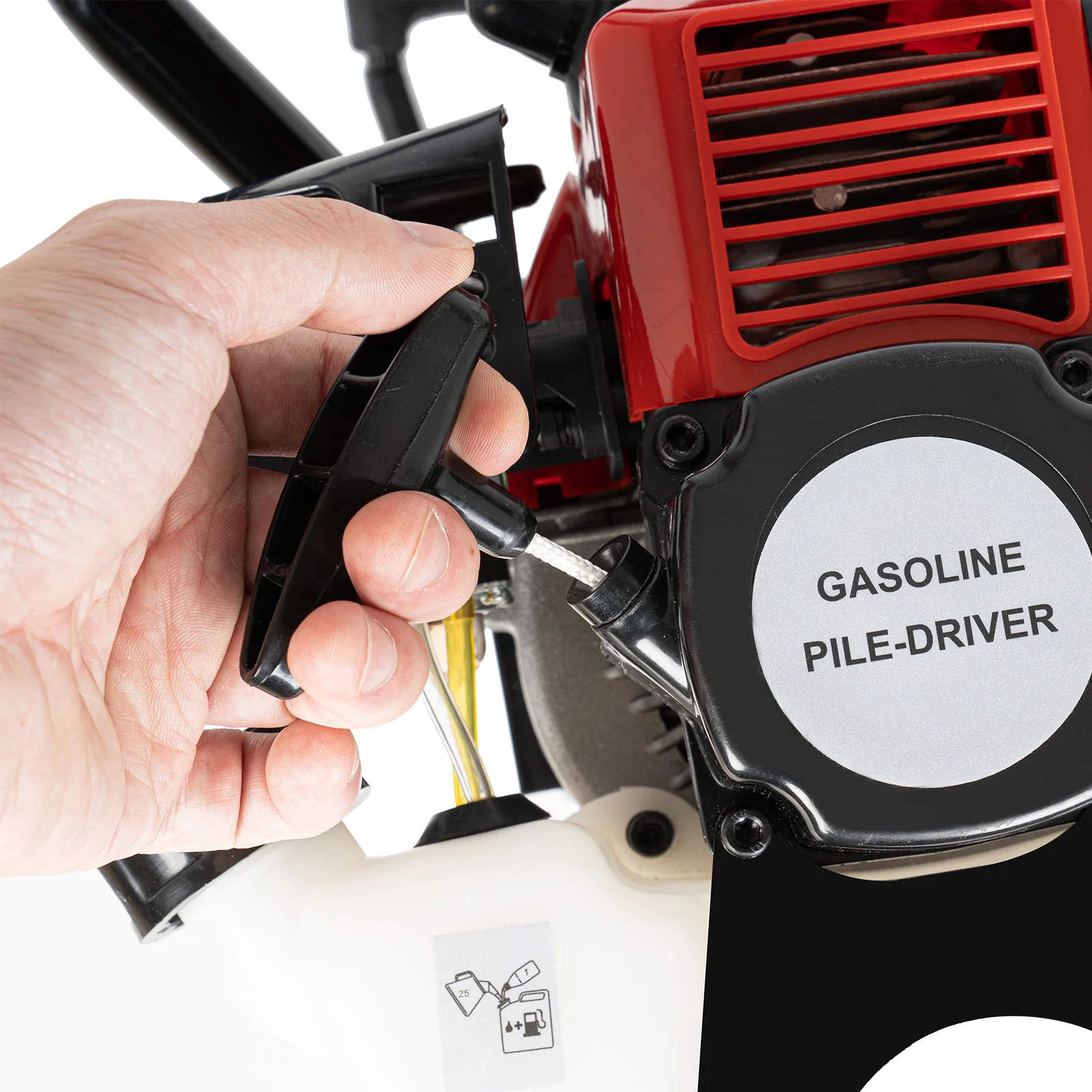

Convenient Operation: It adopts the hand-pull start, and its throttle and flameout switch on the handle is integrated to facilitate your operation.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Application

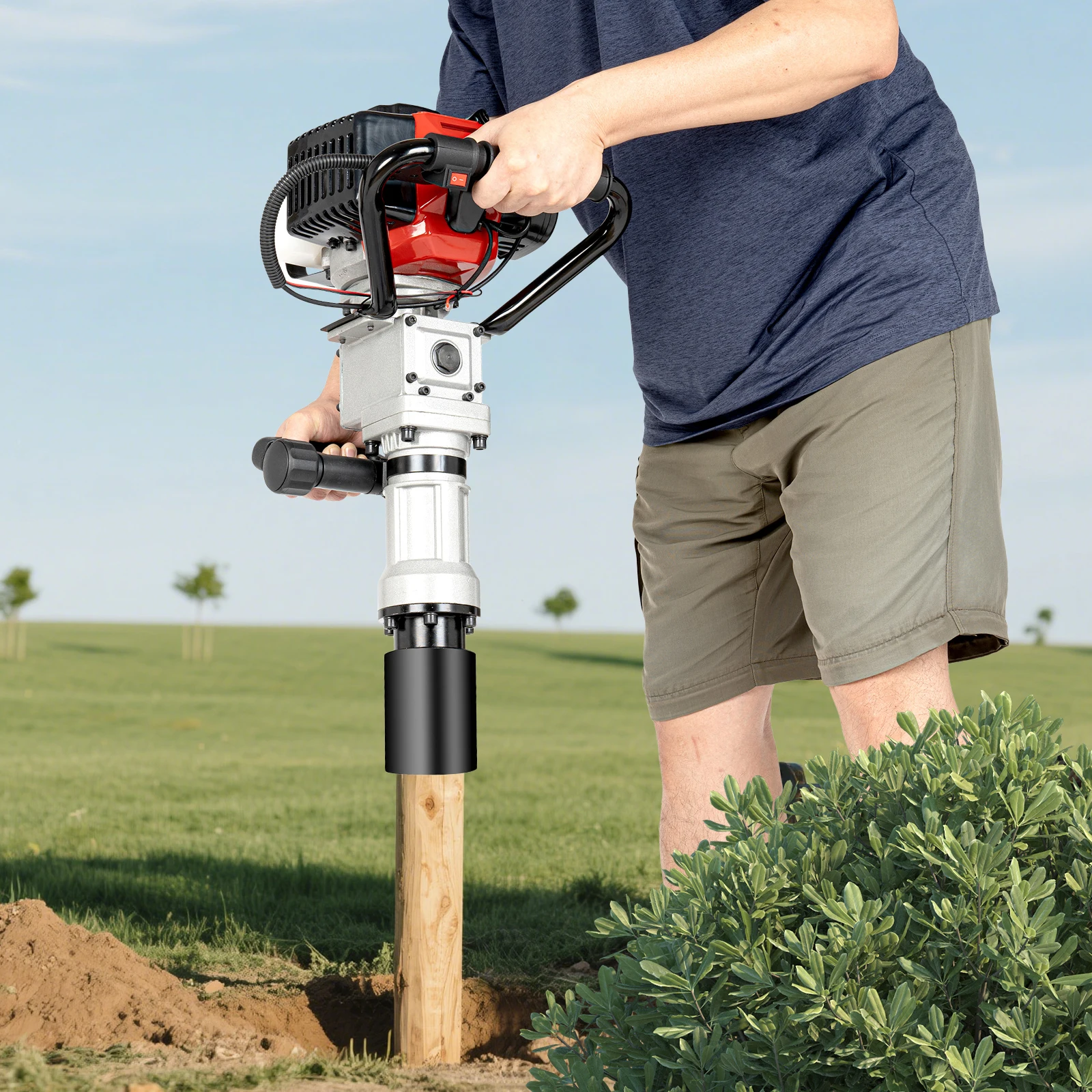

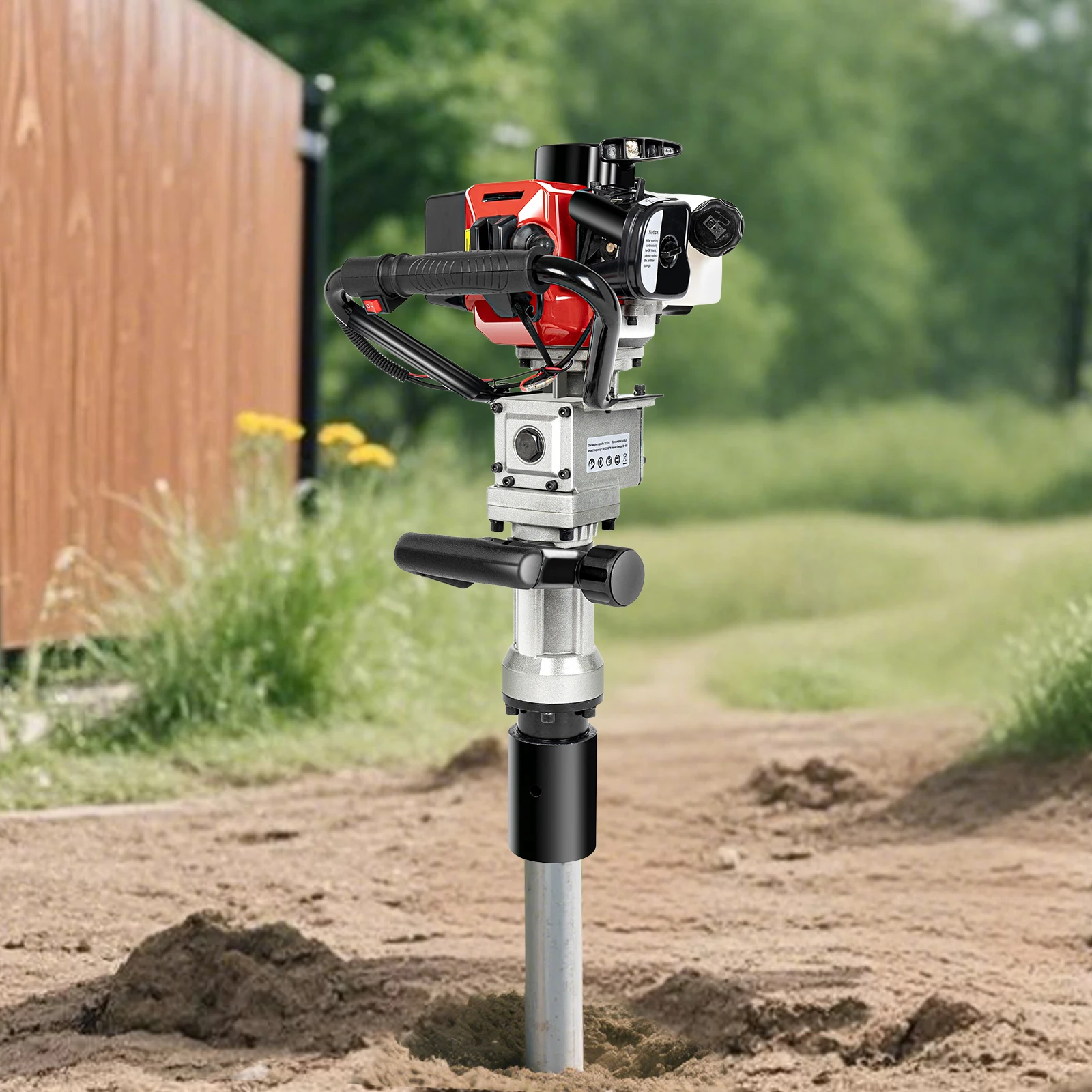

It is suitable for a range of piling projects in gardening, road fencing, agricultural fencing, orchard support, geophysical exploration, construction, vegetable planting, fence protection, etc.

Notes

1.The carburettor must be cleaned after every 100 hours of operation before use. The air filter sponge must be cleaned after 36 hours of operation. The attached manual is universal version for several products, thus the accessories introduced will be slightly different. The product you received is complete. If you have any issue about installation/operation, please contact seller for help.
2.If not used for a long time, the fuel and oil must be cleaned out of the tank and packed in a plastic bag to avoid dust and moisture entering the machine and affecting its use.
3.Pay attention to whether the oil inlet pipe is full of oil before use.
4.After starting up, you need to empty the throttle and let the machine start for a while before starting work.
5.This product cannot be used as a tool for breaking stones.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

How to Operation

1.First, add the oil mixture to the tank.
2.Install a sleeve of the right size for the pile to be driven.
3.Check that the flame-out switch is in the "-" position.
4.Close the damper when the machine is cold to start, and you can open the damper to start when the machine is hot. Wait for the machine to be normal and then open the damper to use.
5.Press the oil bubble to suck up the oil pipe until the air is eliminated.
6.Start the machine and pull the starter continuously.
7.Set the hand grip to the right position.
8.Add oil to the throttle before working until the engine is normal and you can work when you hear a crisp sound.
9.Start working. Hit the depth you want and stop.
10.Stop working by just turning off the flameout switch to the “0” position.
