Product Description
Specification
Model: ECR600
Material: Plastic
Color: Black
Clerks: 10
CPU: MCU 51
Departments: 32
Keyboard: 38 Keys
PLUS: Max.1000
Memory Billing: Yes
Assembly Required: No
Paper Width: 58mm/2.28in

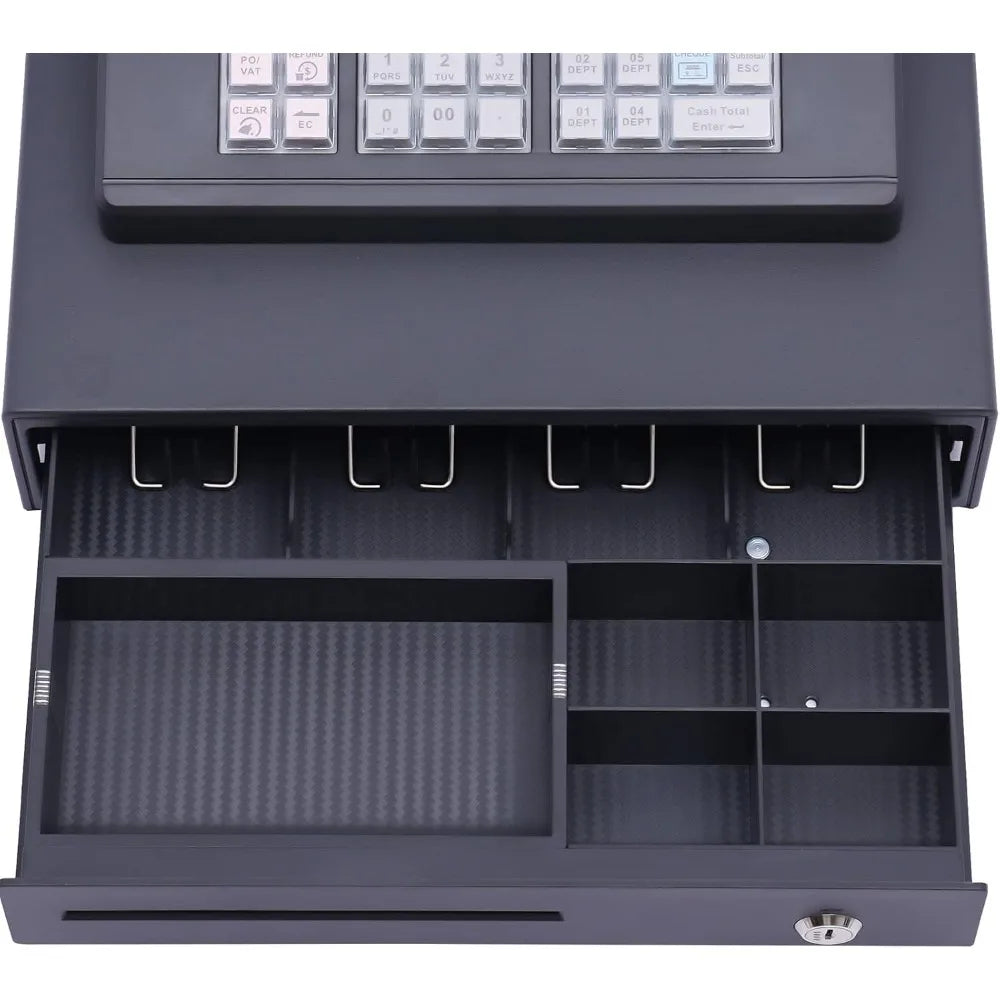

Cash Drawer: 5C/4B or 4C/5B
Printing Method: Thermal Printer
Plug Standard: American Standard
Customer Display: 8 Digits LED
Printing Speed Max: 60mm/s / 2.36in/s
Paper Supply Method: Easy-loading Paper

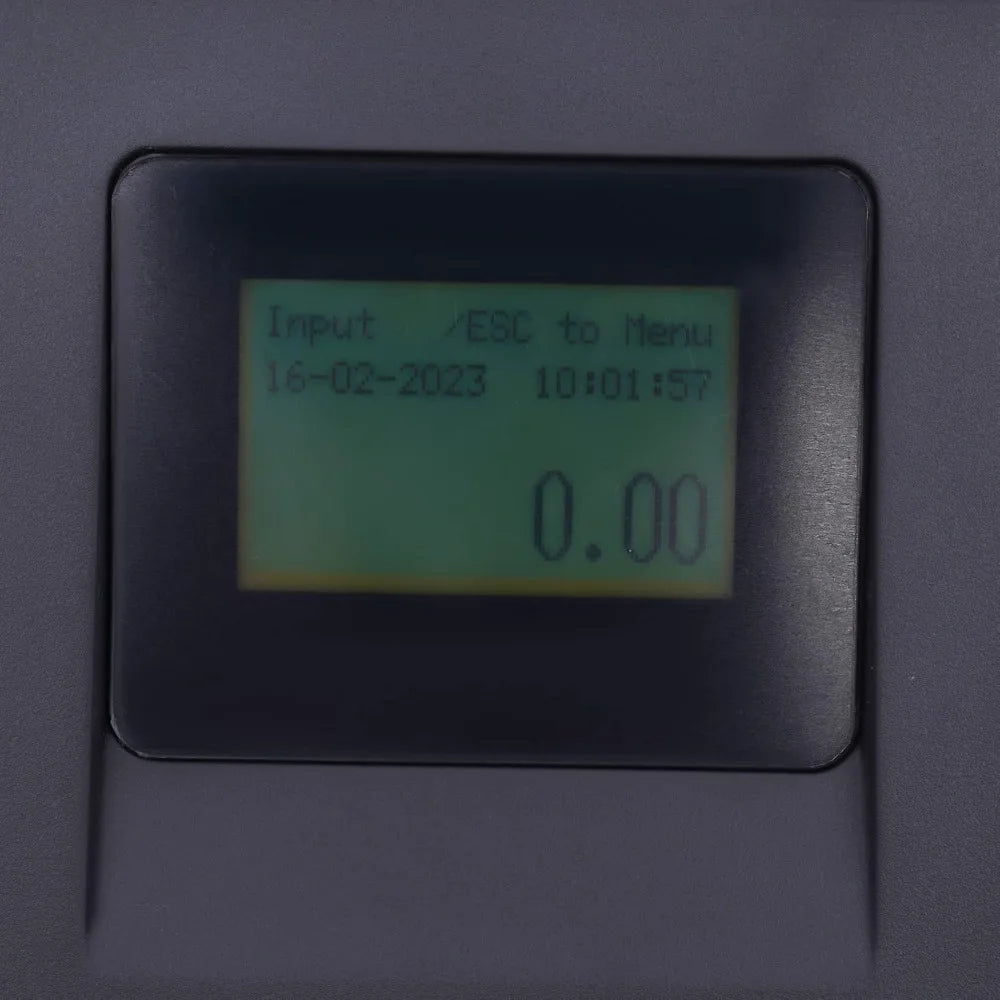

Operator Display: 128*64 Dots LCD
Interface:1*RS232(Optional),1*USB, 1* SD Card Slot
Power Supply: AC 90~260V
Gross Weight: 5.4kg/ 11.9 lbs
Net Weight: 4.5kg/ 9.92 lbs

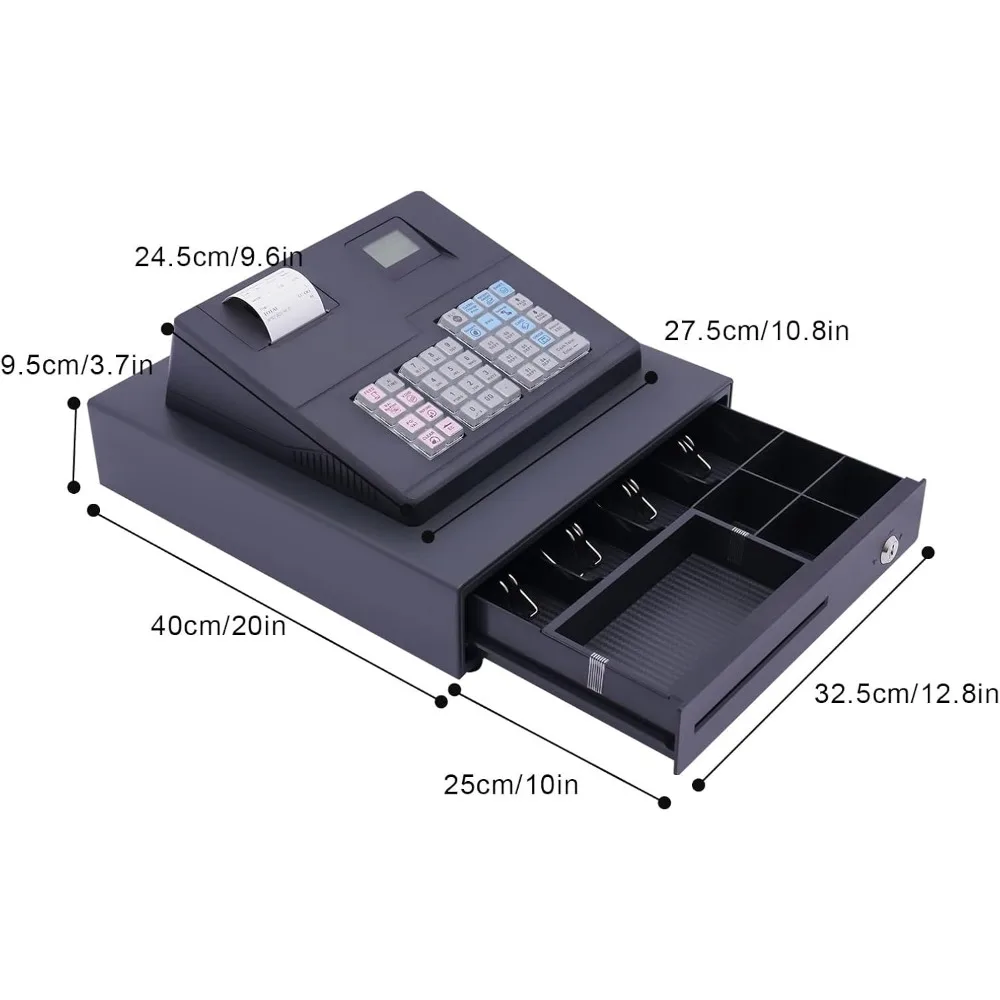

Operating Panel Size (L*W): 27.5 * 24.5cm/10.8 * 9.6in
Cash Box Size (L*W*H): 32.5 * 25 * 9.5cm/12.8 * 10 * 3.7in
Base Size (L*W*H): 40 * 32.5 * 9.5cm/20 * 12.8 * 3.7in
Package Size: 42*38*22cm/ 16.54*14.96*8.66in

Package Included
1 * Thermal Cash Register
1 * Power Cord
1 * Adapter
1 * USB Cable
2 * Keys
1 * English Instruction
A Roll of Printing Paper

Notes
1. Before use, the equipment shall be placed on a stable plane. Please do not place or store the equipment in an environment with a temperature higher than 50℃ (122 ℉), otherwise, the equipment will be damaged.
2. When connecting the equipment to the power supply, please confirm that the power supply is: AC 90~260V
3. Do not inject any liquid from the opening, otherwise, it will cause serious damage or even electric shock.
4. The small ticket paper needs to use heat-sensitive paper.
