Brand Name: BSIDE

Certification: CE,FCC,RoHS

Display Size: 4.0 - 6.9 Inches

Hign-concerned Chemical: None

Maximum temperature: 550 ℃

Minimum temperature: -20 ℃

Origin: Mainland China

Style: Handheld

Thermal pixels: 256*192

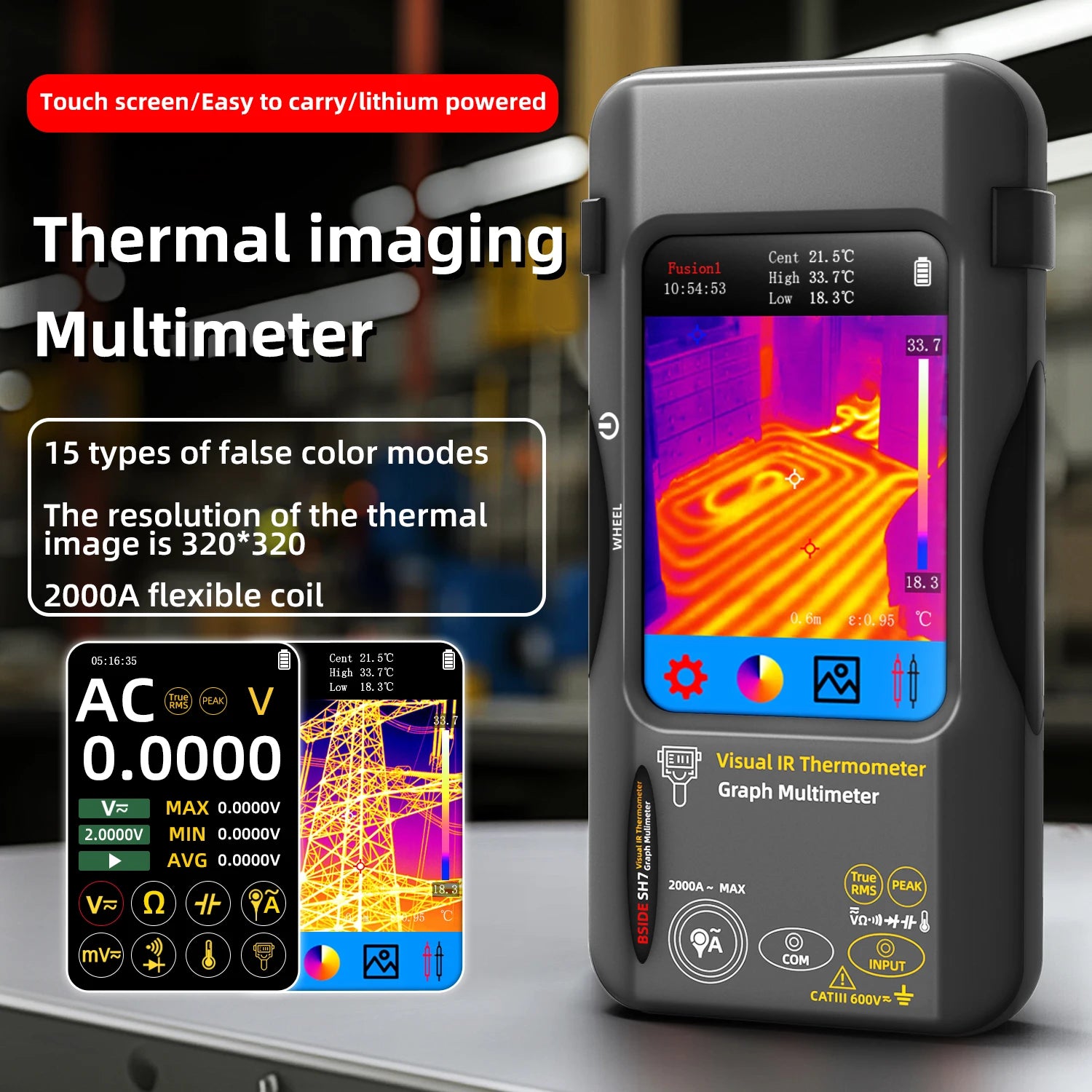

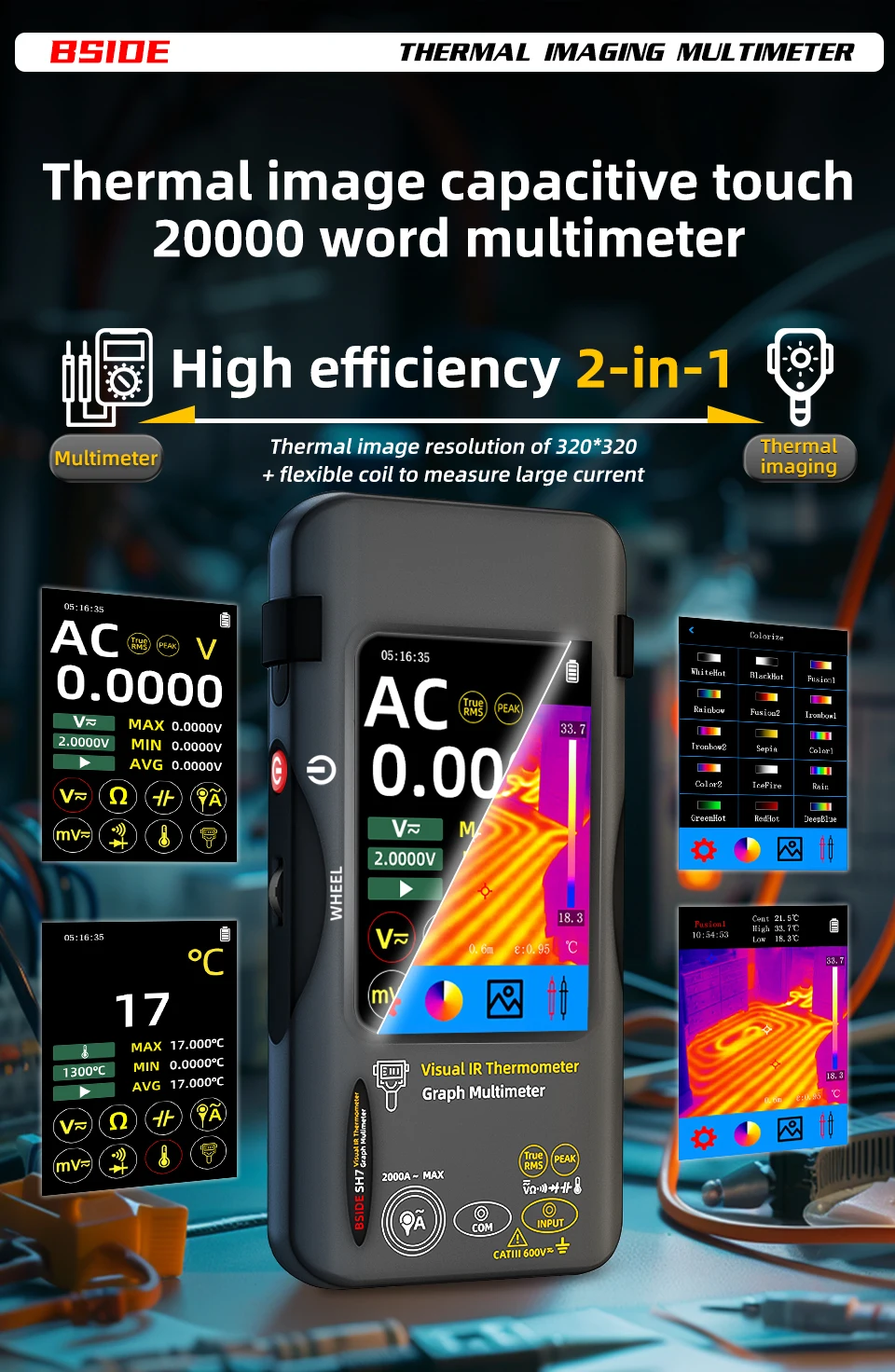

BSIDE Thermal Imager Multimeter 3.98 inch touchscreen 320*320 resolution 15 color palettes Water Leak Detection Circuit repair

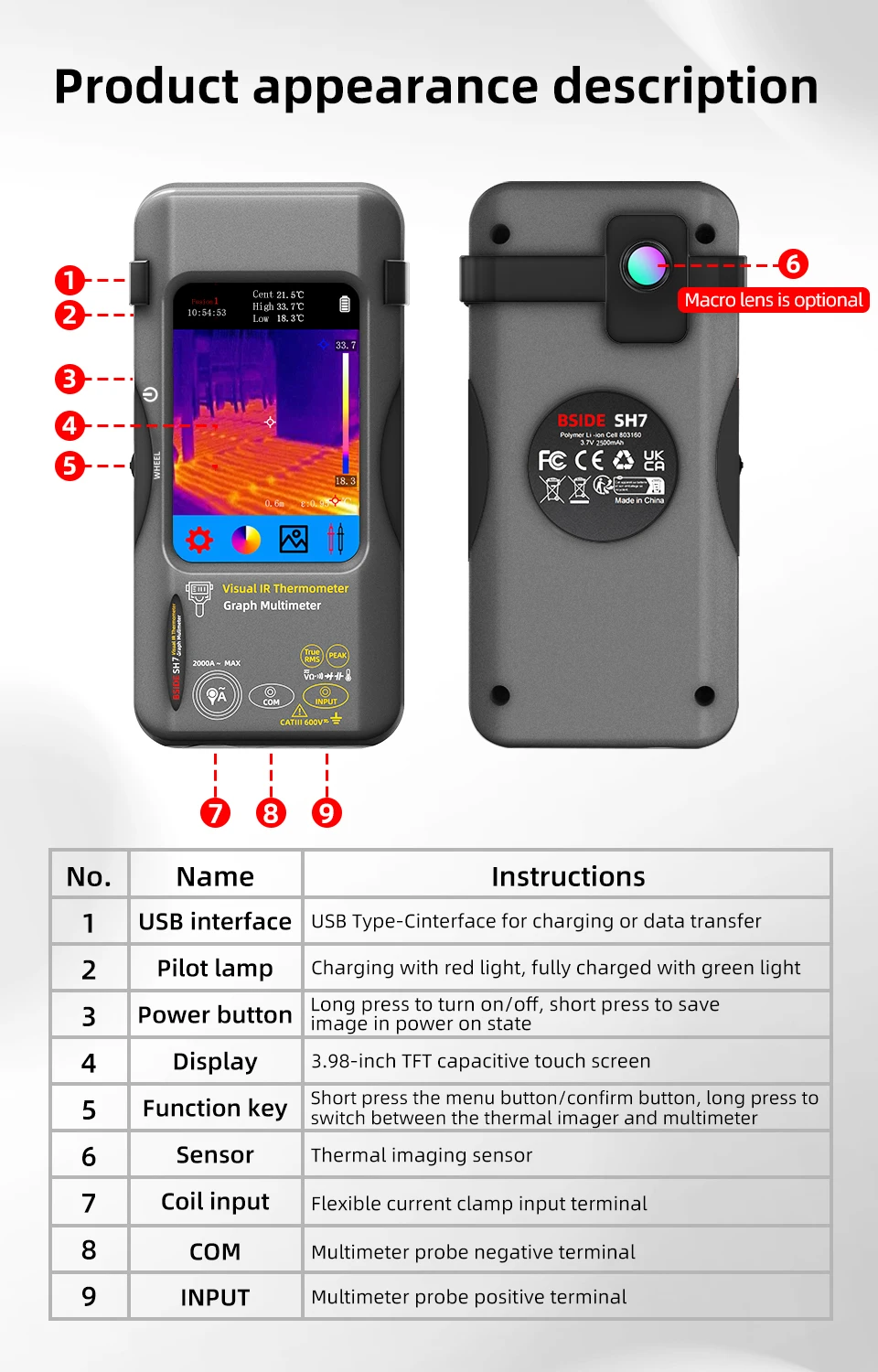

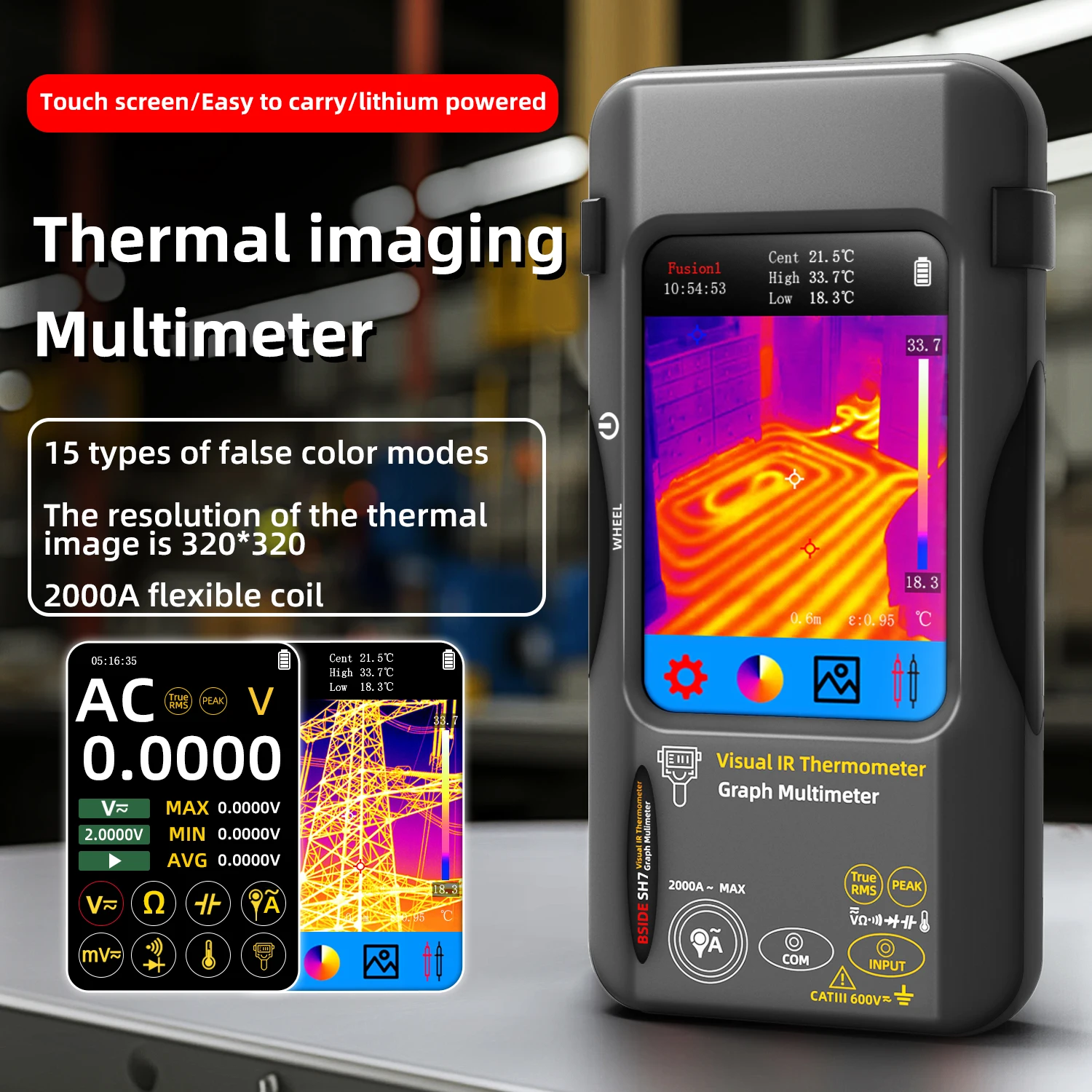

Poduct overview
BSIDE thermal imaging camera multimeter is a comprehensive inspection tool that integrates infrared thermal imaging technology with traditional multimeter functions, mainly used in power equipment maintenance, industrial maintenance and other fields.

Temperature anomalies can be quickly located through thermal imaging, and combined with multimeter measurement, the efficiency and safety of troubleshooting can be improved

Scenario application
Electrical maintenance: detect the temperature anomalies of transformers and high-voltage distribution boxes, and troubleshoot the overheating problems of connectors, fuses and cables.

Automotive Maintenance: Quickly diagnose circuit board hot spots or abnormal battery pack temperatures to assist in electrical system maintenance.

Home maintenance: locate the heat leakage point of the pipe, check the circuit overload, heating uneven and other problems.

Features & Benefits

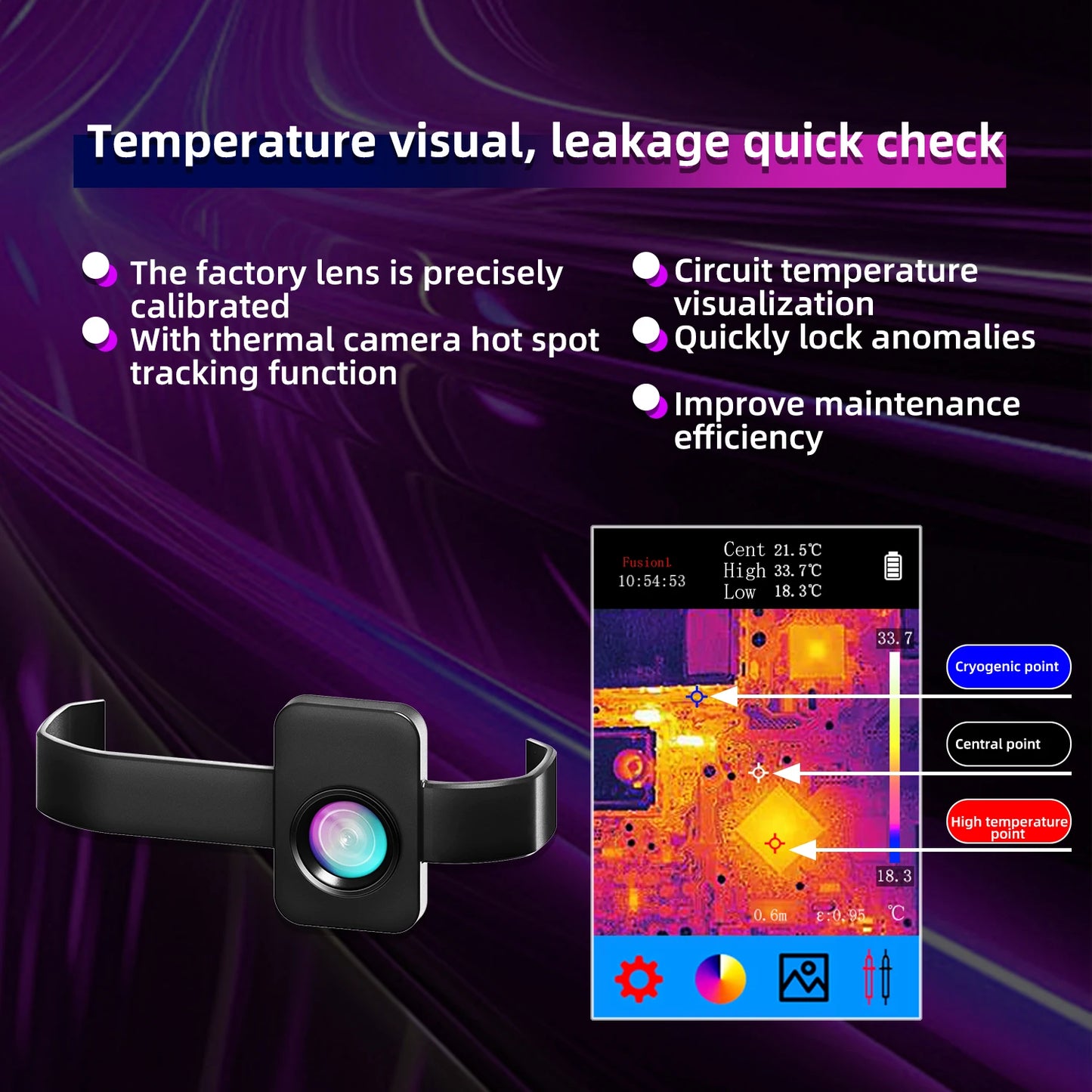

Efficient diagnosis: Visualize hot spots to reduce troubleshooting time

Safety protection: non-contact temperature measurement, avoid contact with high-temperature parts

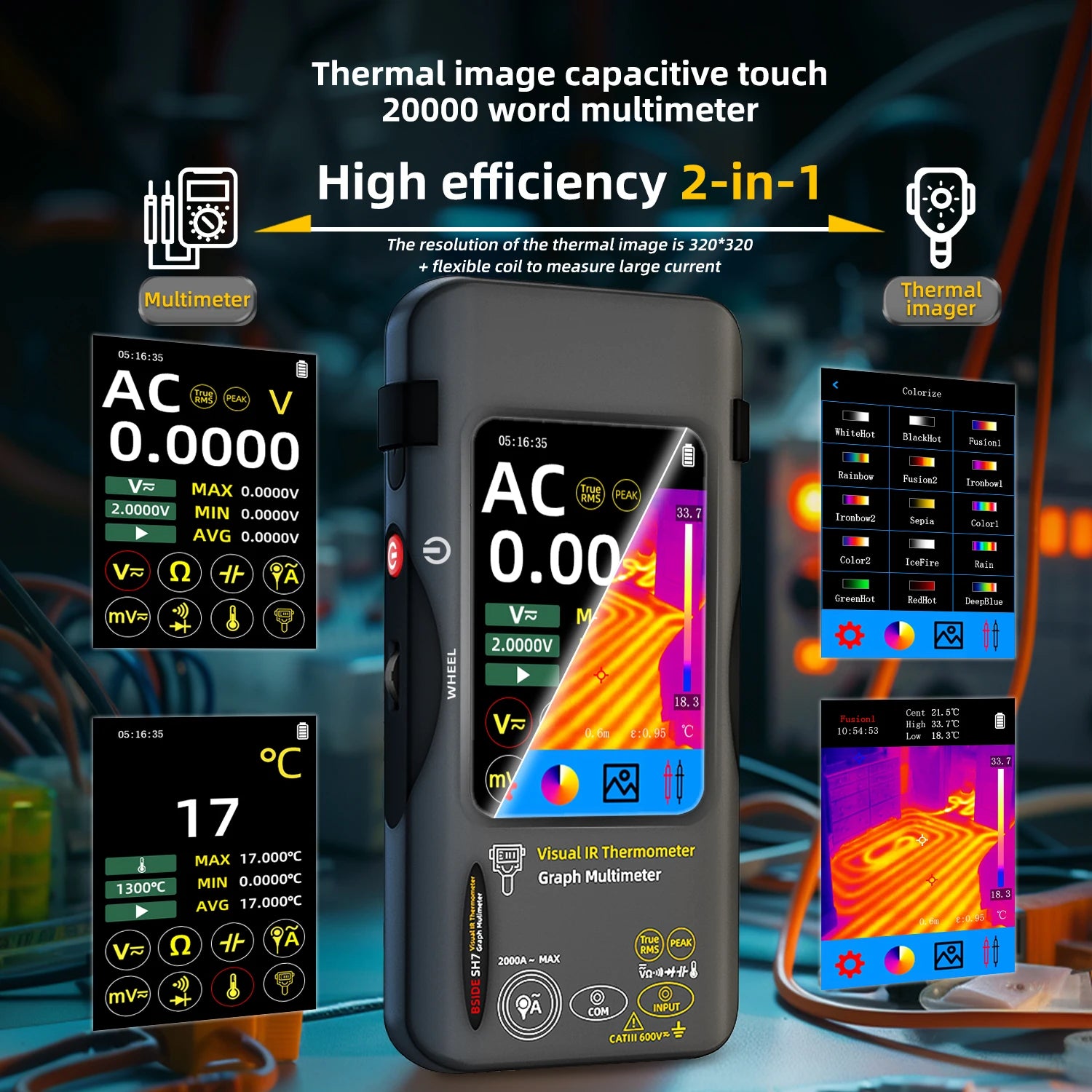

2-in-1 design: Save the cost and space of carrying multiple devices

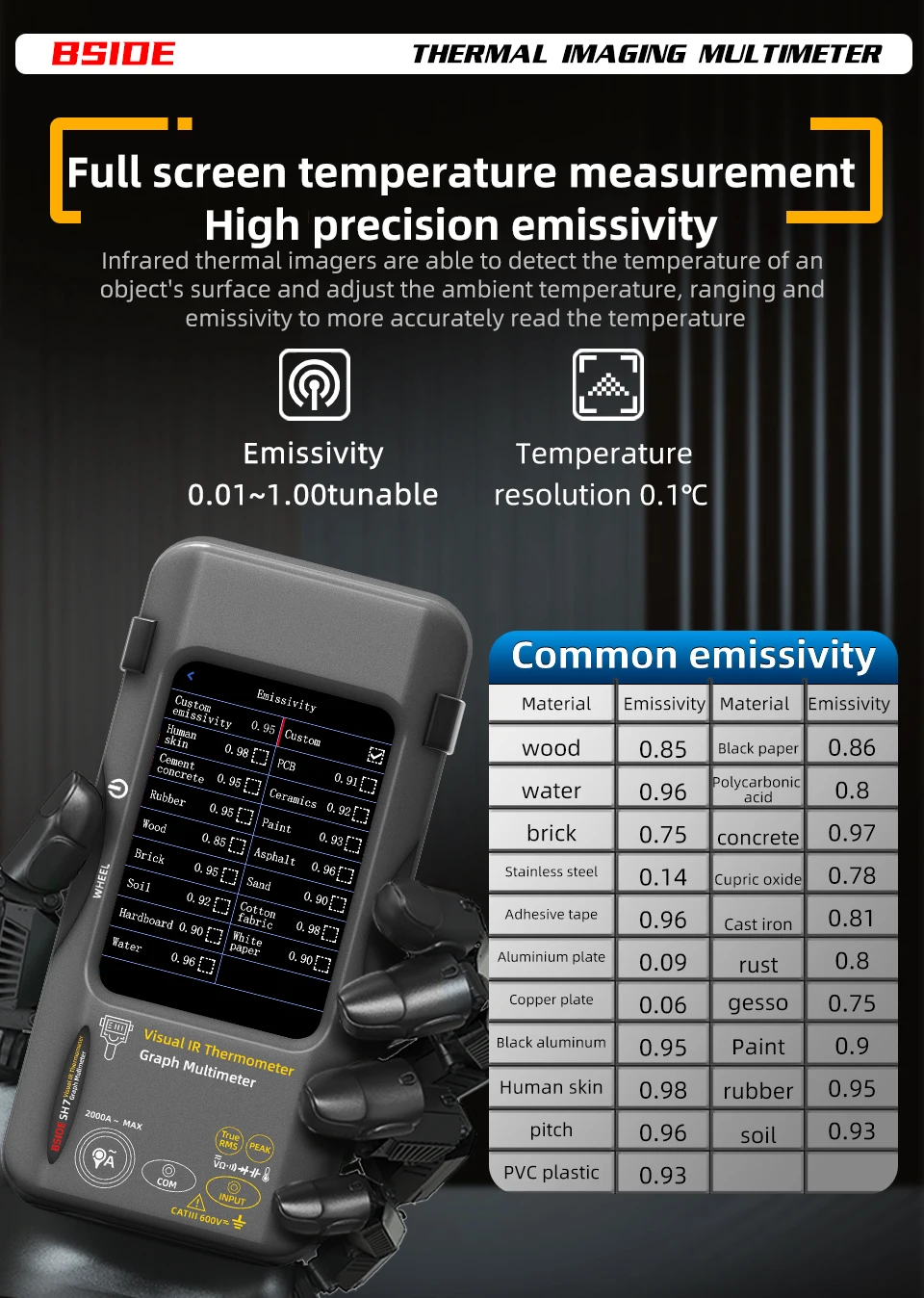

Thermalimagingperformanceindicators

Sensor type：Vanadium oxide(VOx) microcalorimeter

Response Band：8~14um

Thermal image resolution：320x320 Pixels

Angle of view(FOV)：50.0°(H)x50°(V)/72.1°(D)

Spatial resolution (IFOV)：8.89 mrad

Frame rate：25Hz

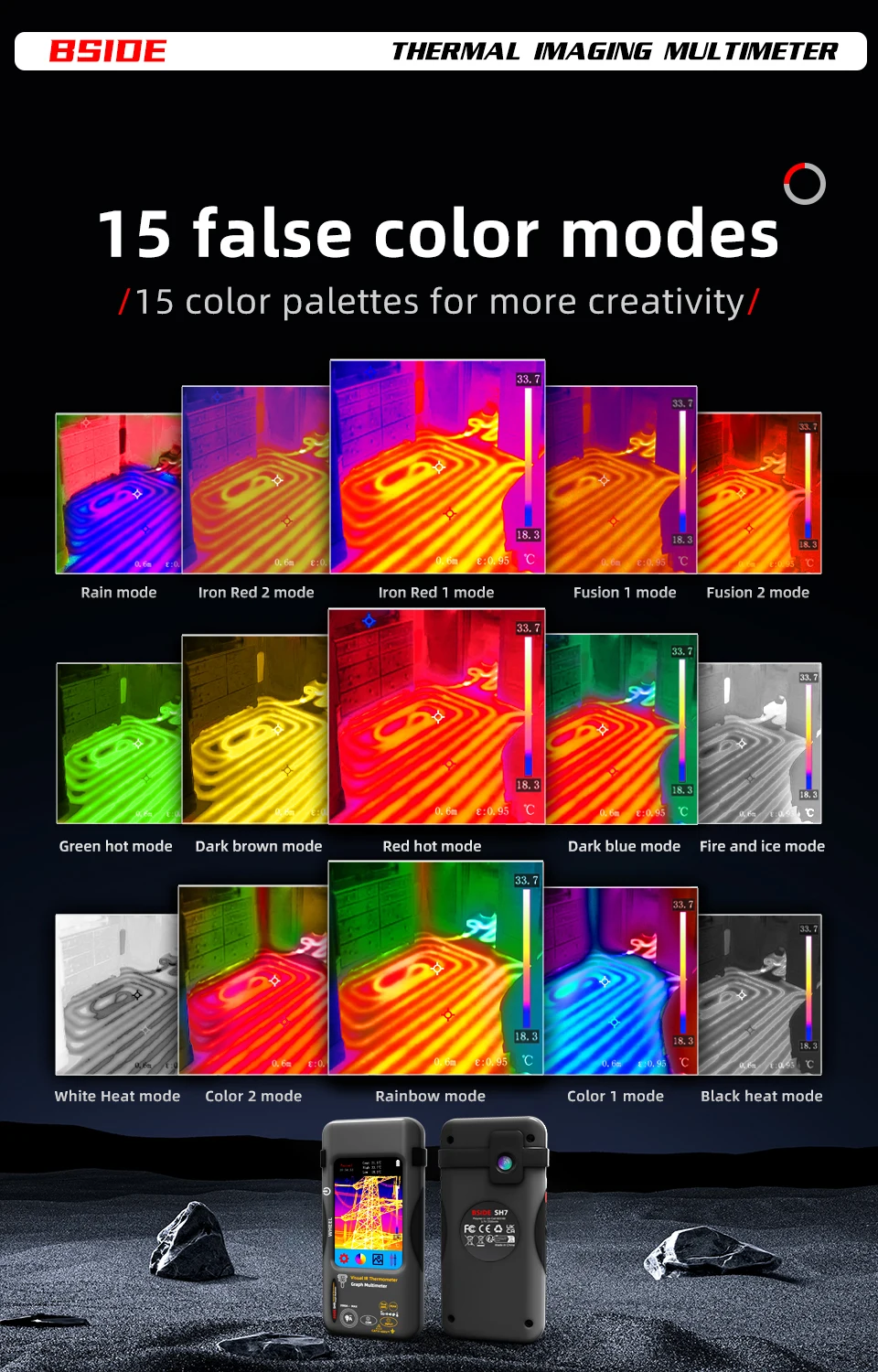

Swatches：White Hot, Black hot, Fusion 1.Rainbow,Fusion 2.lron Red 1, lron Red 2, Bark brownColor 1, Color 2, lce fire, Rain, Green hot,Red Hot, Dark blue.

Display screen：3.98 inches TFT Capacitive touch screen

Display resolution：320x480

Hardware interface：Type-C USB

Battery type：Rechargeable lithium battery
(3.7V/2500mAh)

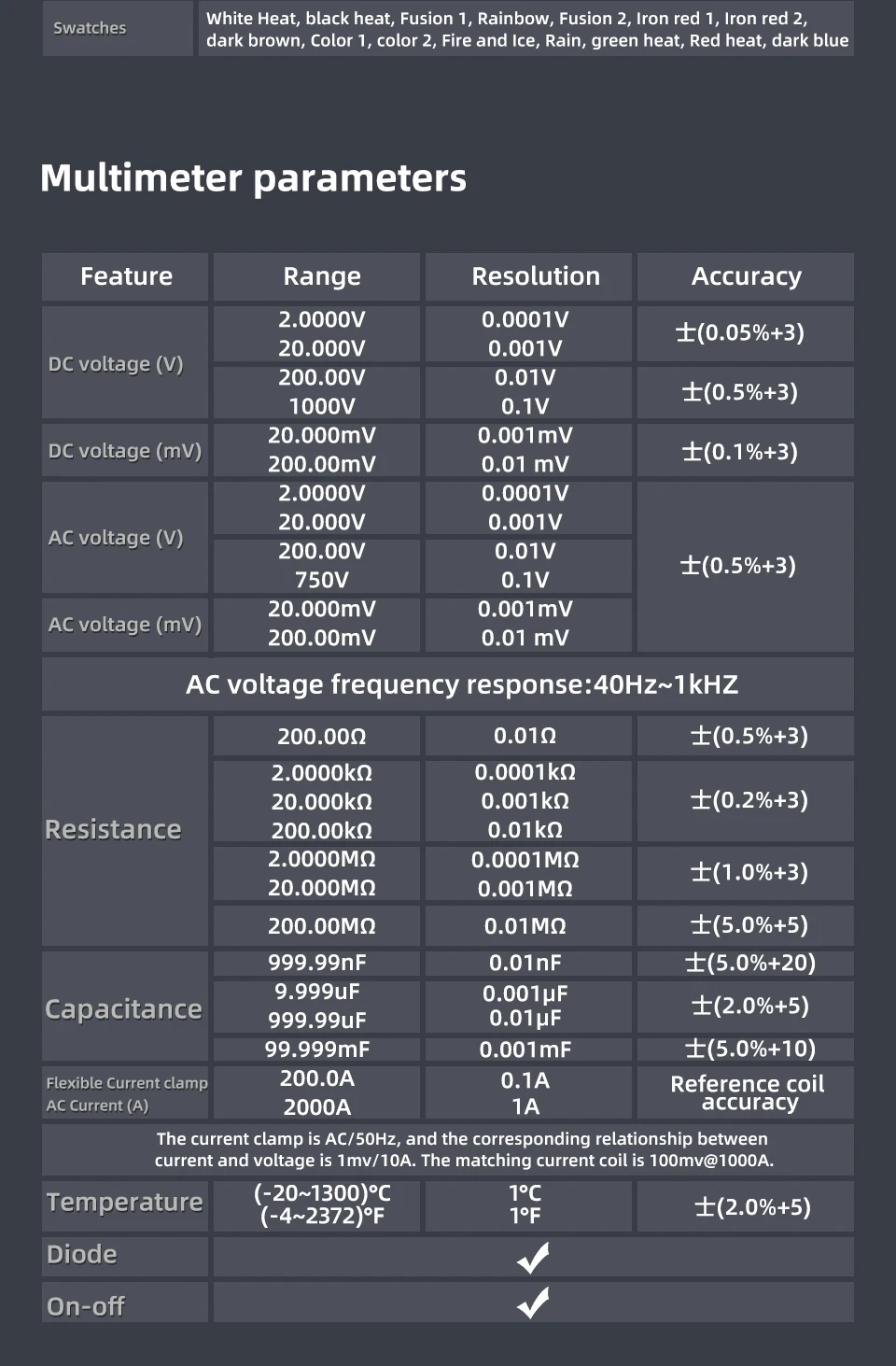

Multimeter Technical index
Maximum display: 20000 counts

Screen size: 3.98 inches.

DC voltage: 20mV 0.001mV ± (0.1% 3); 200mV 0.01mV ±（0.1% 3）； 2V 0.0001mV ±（0.05% 3）; 20V 0.001mV ±（0.05% 3）; 200V 0.01V±（0.5% 5）; 1000V 0.1V ±（0.5% 3）

AC voltage: 20mV 0.001mV ± (0.5% 3); 200mV 0.01mV ±（0.5% 3）； 2V 0.0001mV ±（0.5% 3）; 20V 0.001mV ±（0.5% 3）; 200V 0.01V±（0.5% 3）; 1000V 0.1V ±（0.5% 3）

Flexible Current Clamp AC Current: 200A/2000A 0.1A/1A ±(1% 5)

Resistance: 200Ω 0.01Ω ± (0.5% 3) - 2000MΩ 0.01MΩ ± (1.5% 5)

Capacitance: 999.9nF 0.01 nF ± (5% 20); 99.99mF 0.001mF ±（5.0% 10）

Temperature: -20-1300°C 1°C ± (2% 5)

Diode: Yes

Continuity: Yes

Power supply: Rechargeable lithium battery (3.7V/2500mAh)

Size: 169*81*26.8mm

Weight: 270.7g

Package includes:

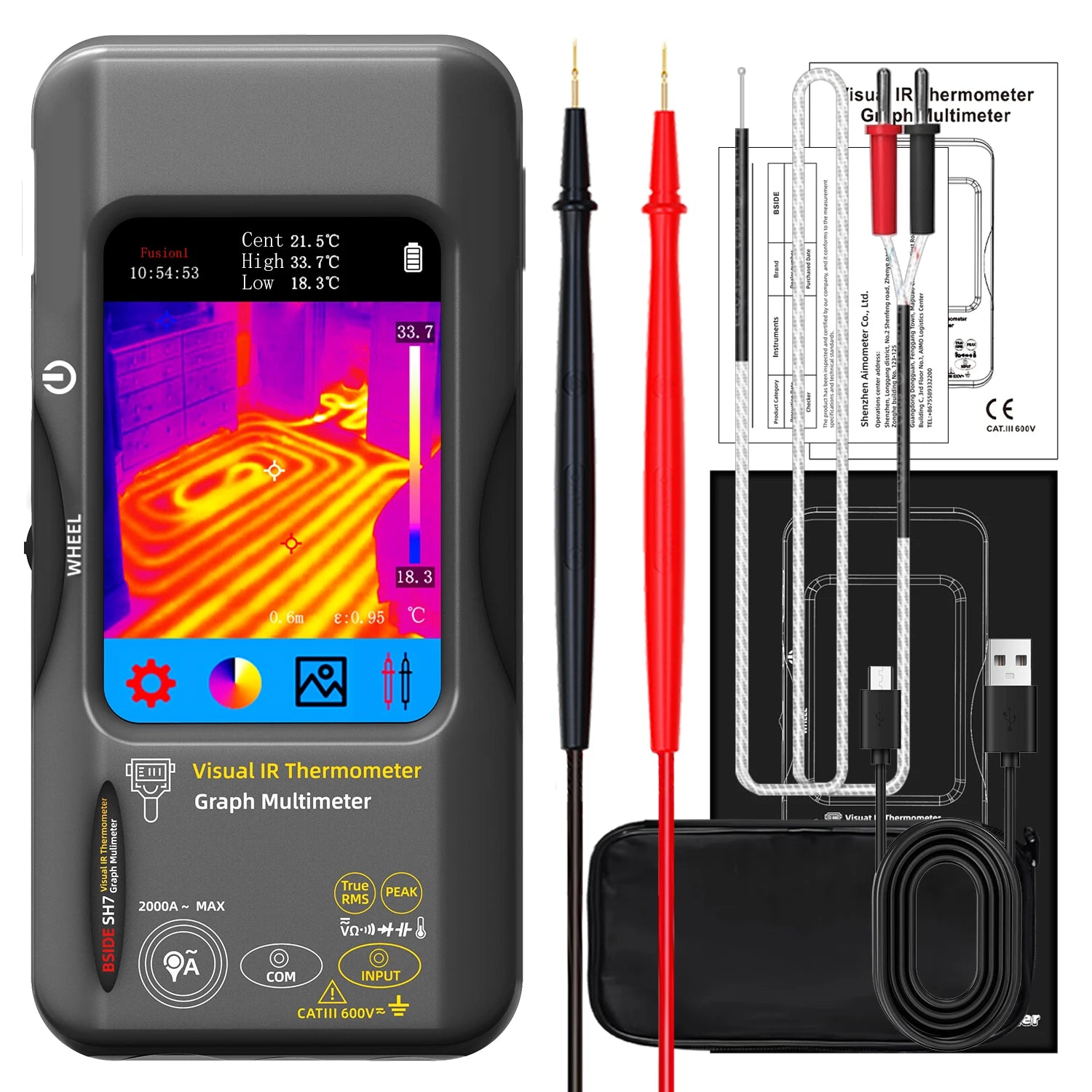

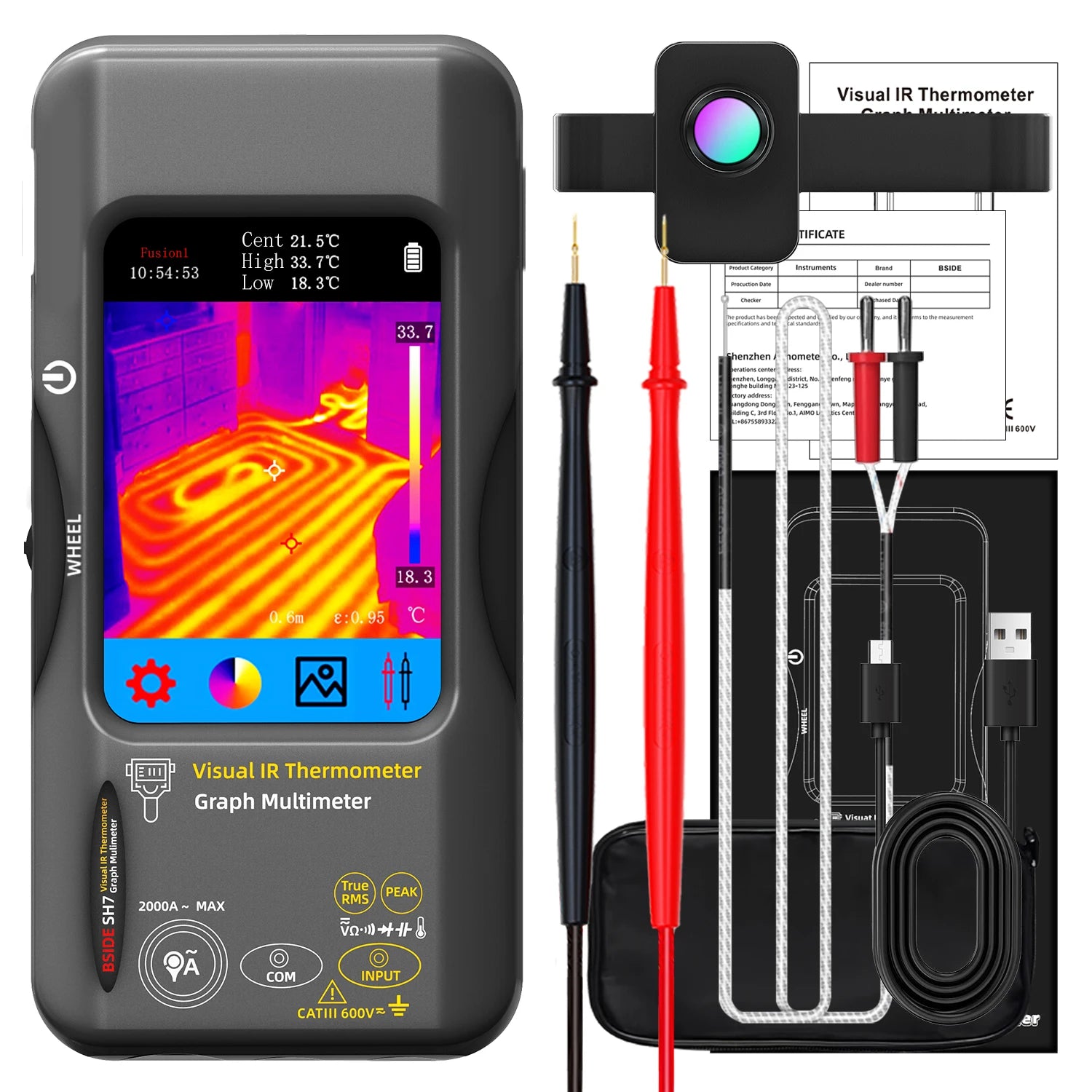

1 x Thermal Imaging Camera Multimeter
1 x cloth bag

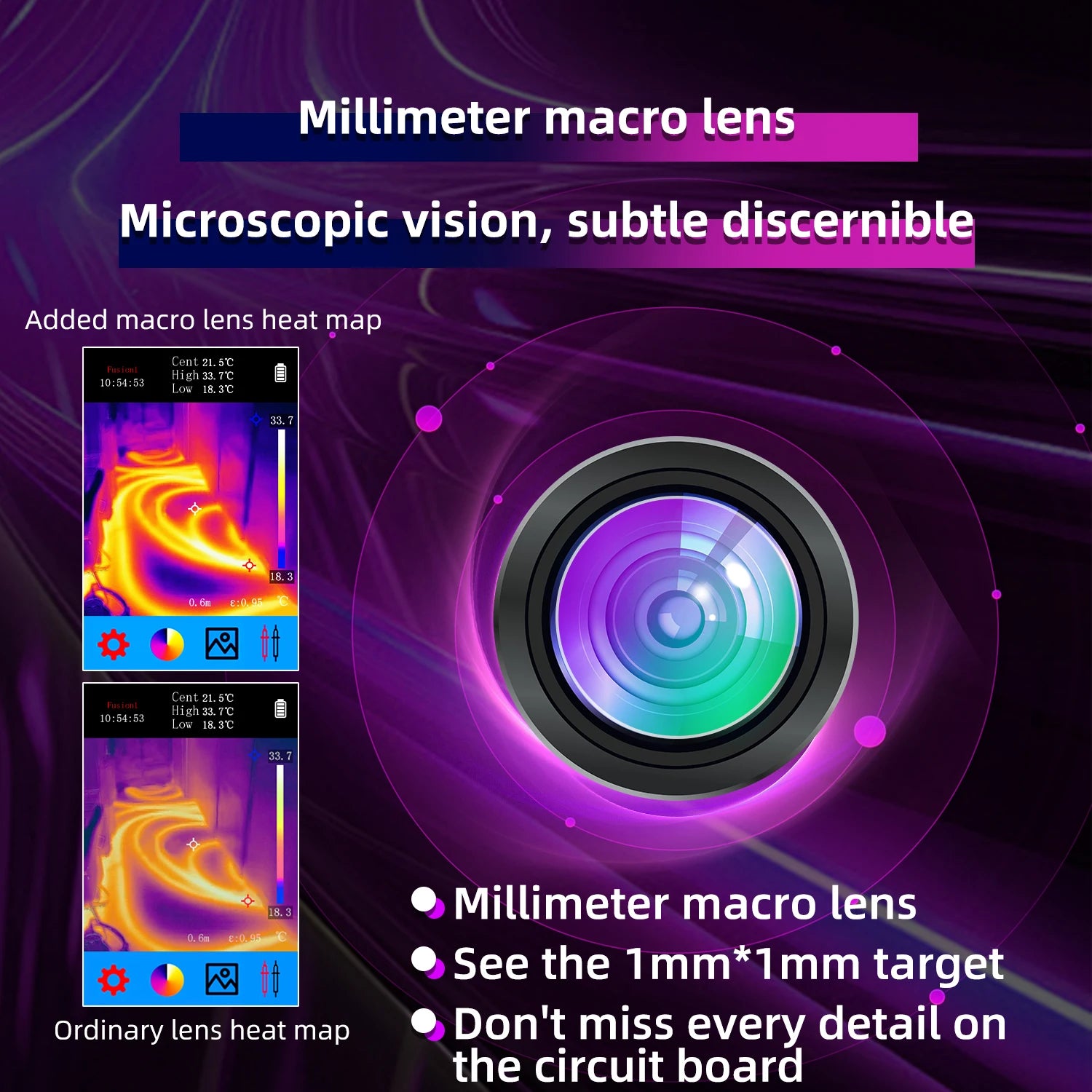

1 x Macro lens (Choose)
1 x multimeter pen
1 x box
1 x charging cable
1 x Instruction Manual
1 x warranty card
1 x charging cable
1 x User Manual
1 x Type K thermocouple
