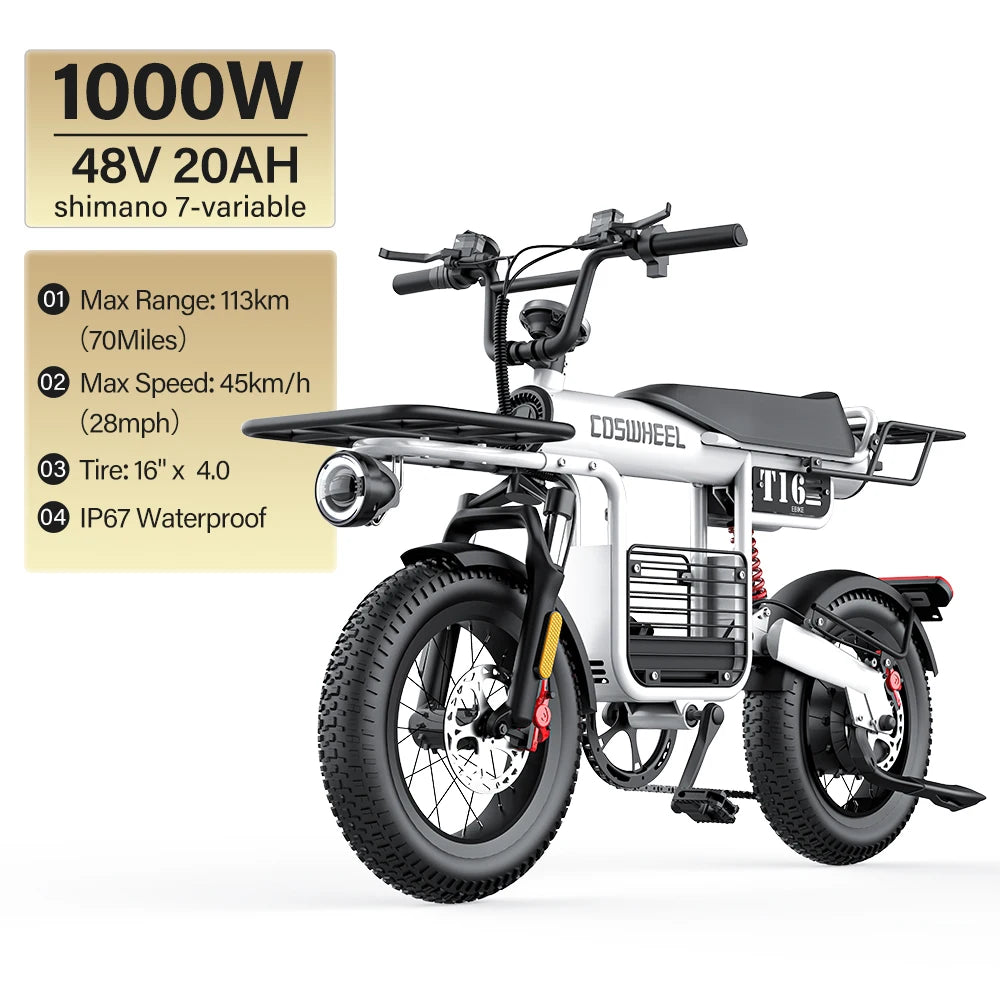

SPECIFICATIONS

Battery: 48V 20Ah Battery (Lithium 18650 Cells)

Brake: Oil brake

Brand Name: NoEnName_Null

Charger: 48V 3A Charger

Controller: 48V 22A

Display: LCD Display, Equipped with UDE remote control + 2 NFC cards

Energy: 960Wh

Front Light: Round retro headlights with daytime running lights

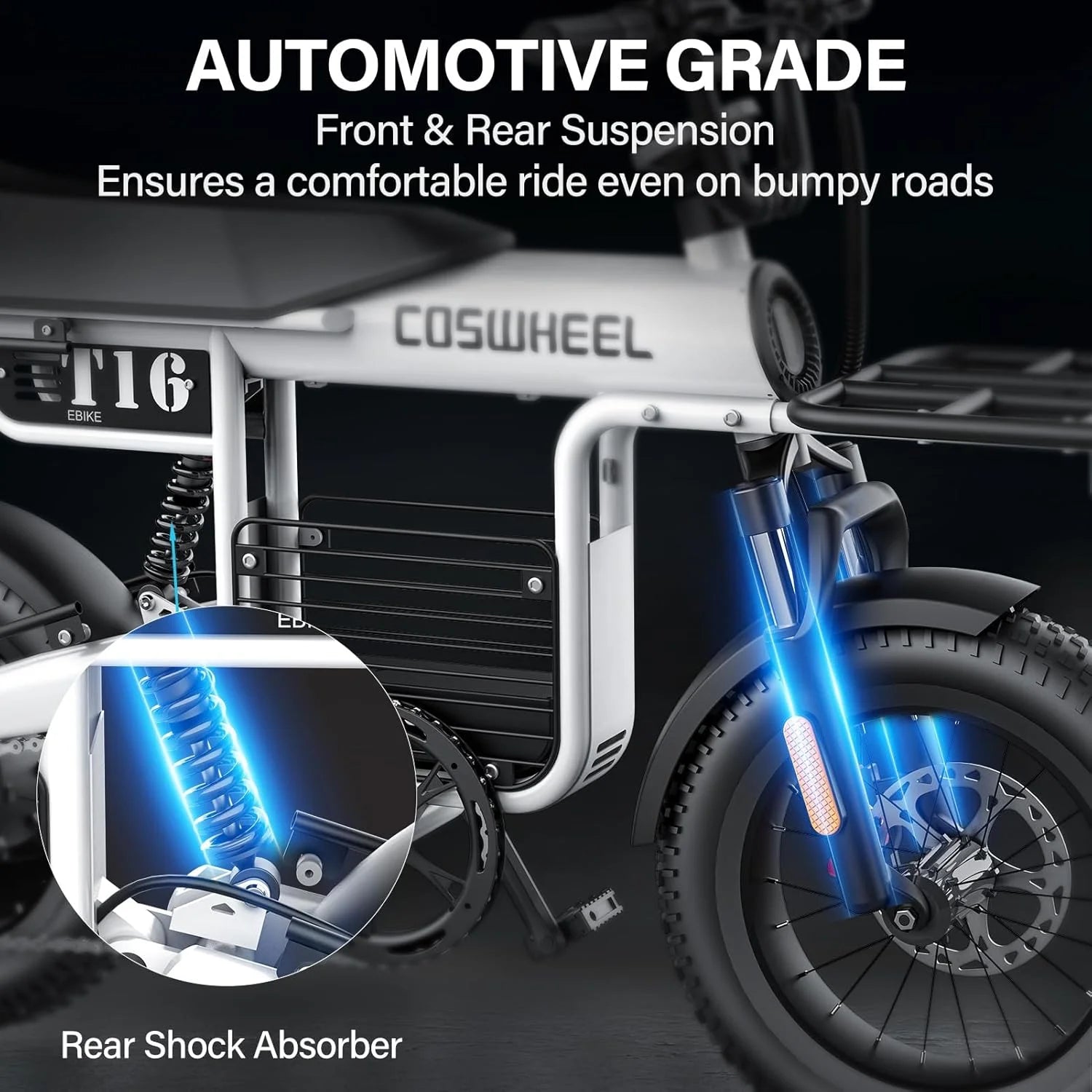

Front Suspension: Single-shoulder shock-absorbing front fork 16 inches * 4.0 * 135mm \ total height 385mm \ toothless riser length 215mm, 80mm Travel

Hign-concerned Chemical: None

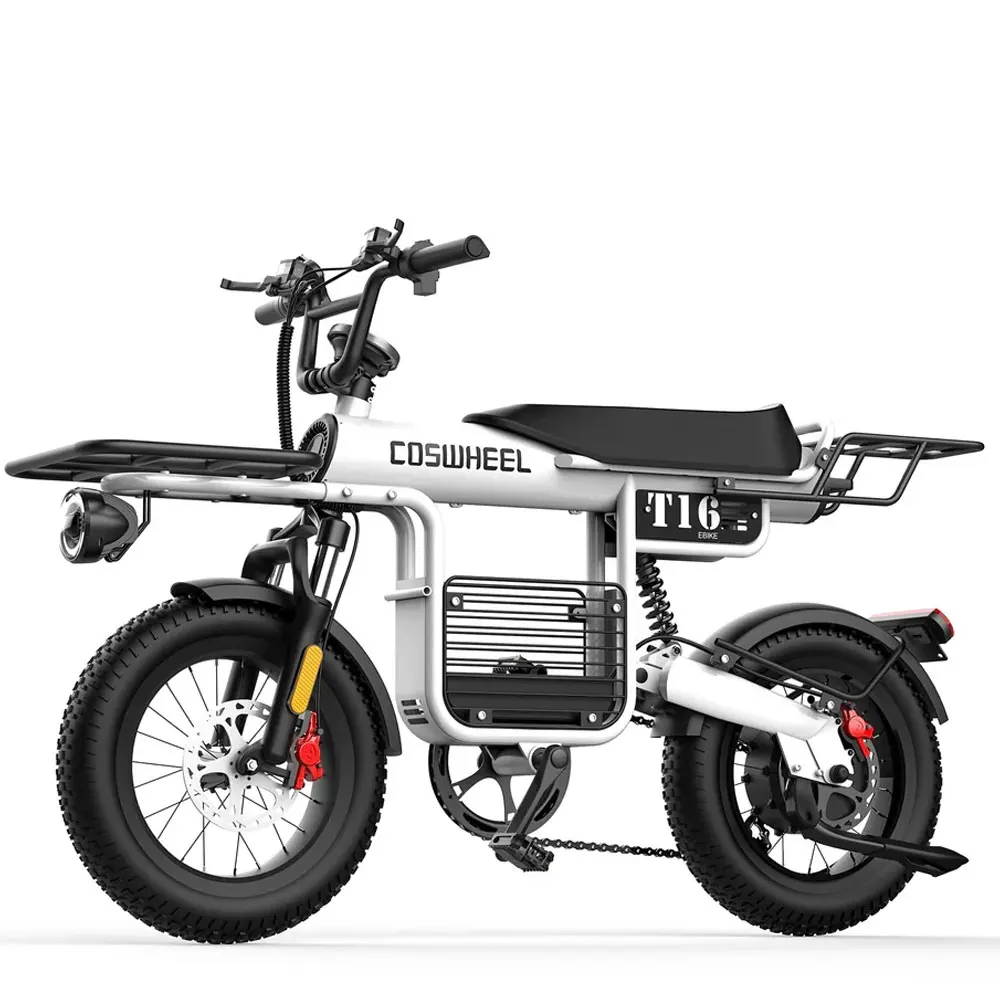

Model Name: T16

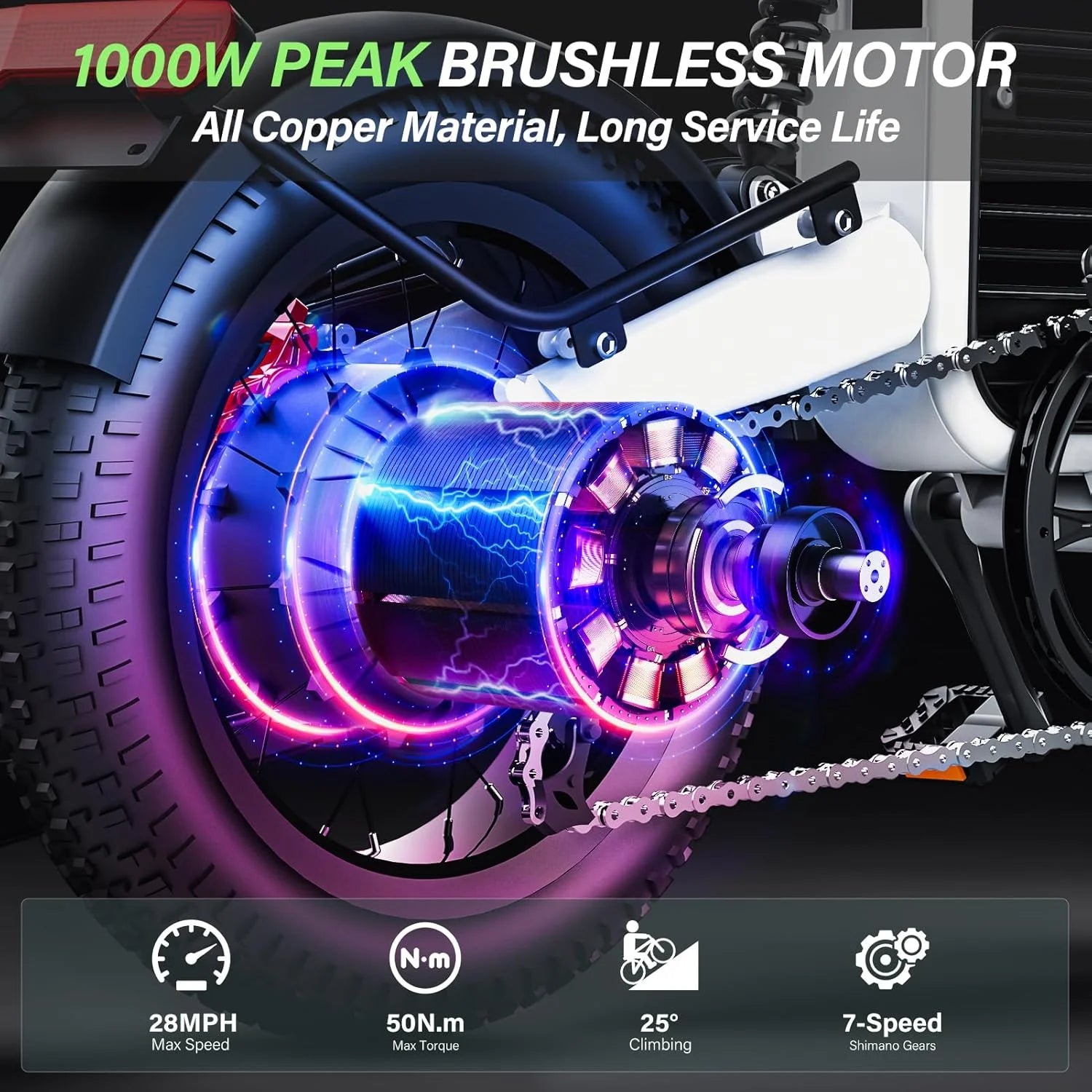

Motor: 48V Peak 1000W (Rated 750W) Brushless Rear Hub Motor 50N.m

Origin: Mainland China

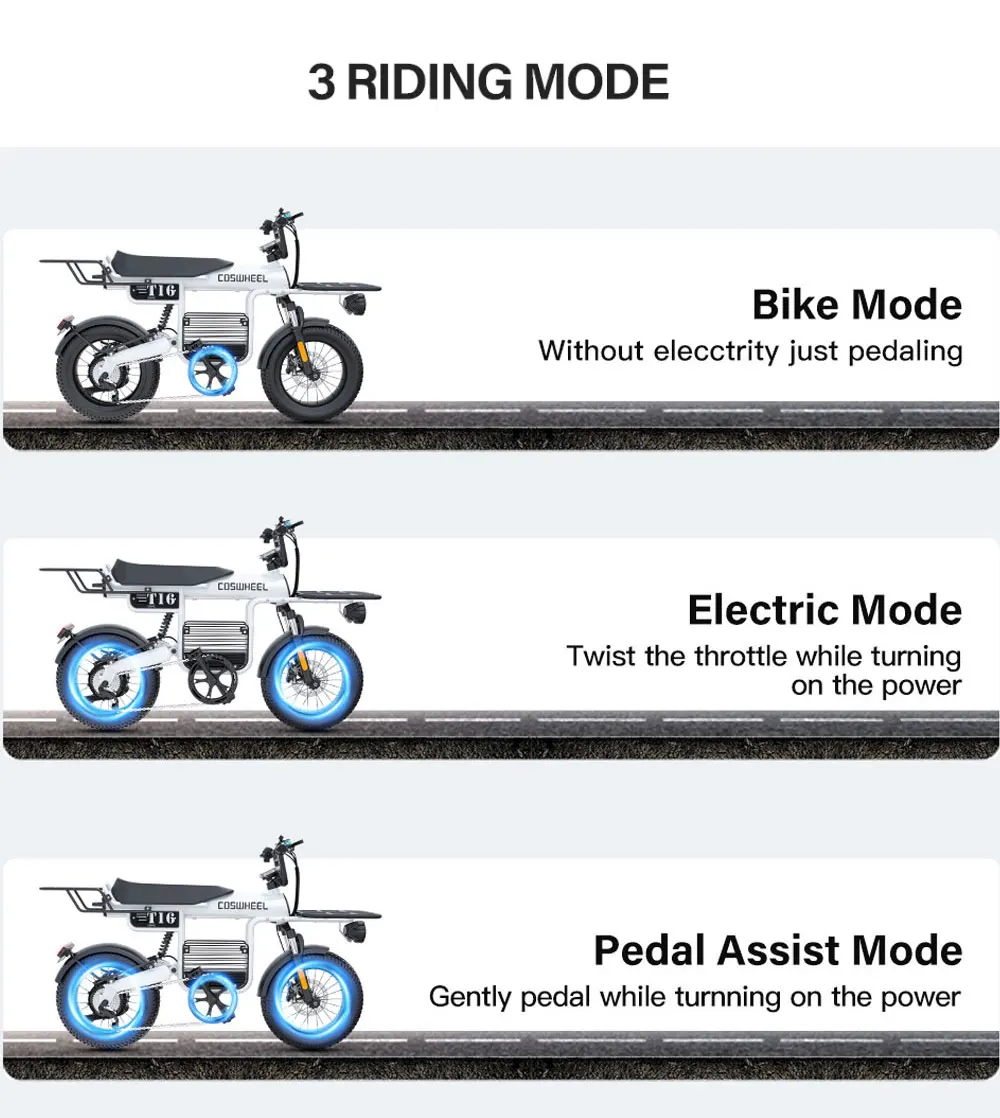

Range: 40+miles (64km) in Class-2 throttle-only mode (pure electricity); 70+miles (113km) in Class-1 PAS (pedal assist)

Rear Suspension: 3000 Pounds, 170mm Travel

Throttle: Grip Twist Throttle

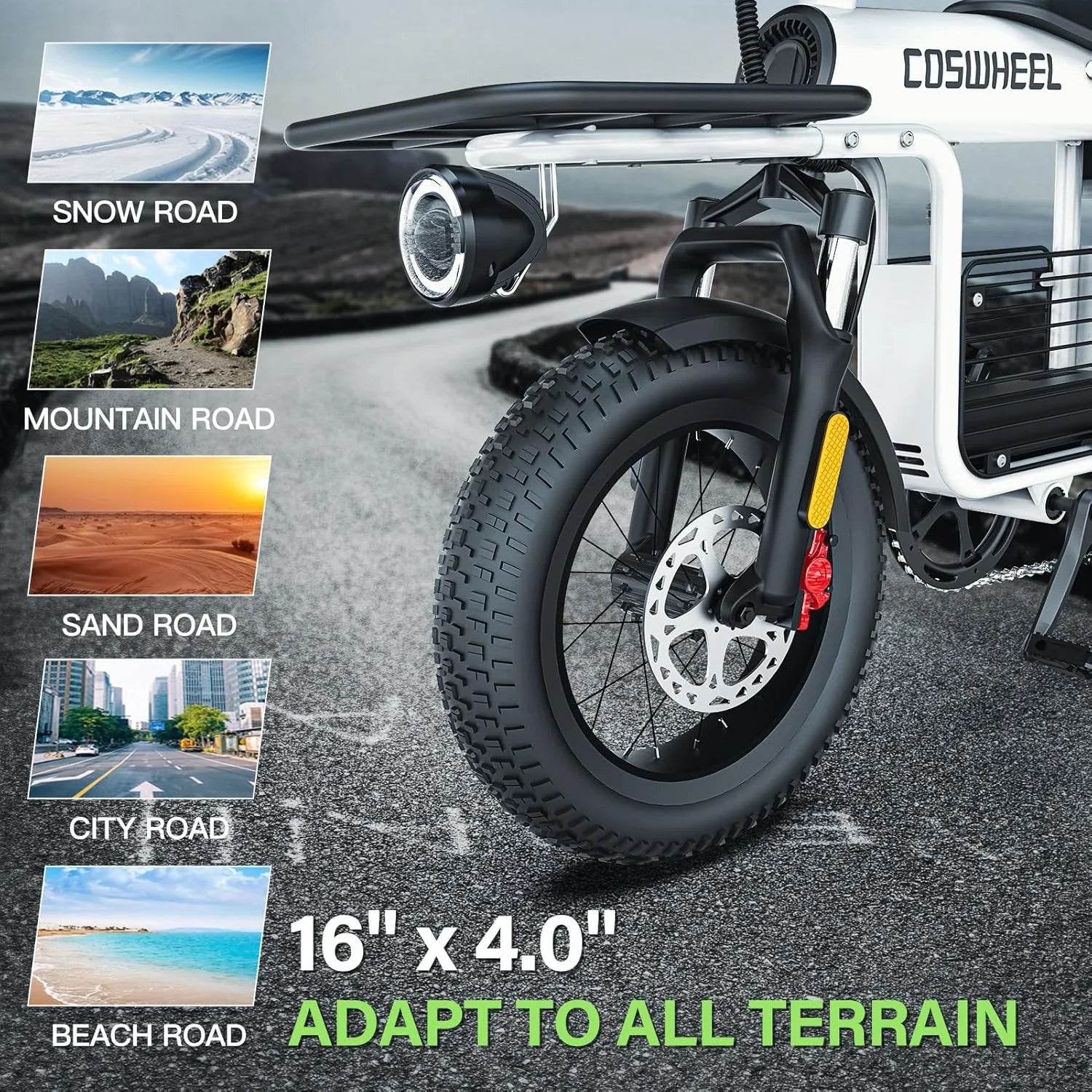

Tires: 16 inch 4.0

Top Speed: 28 Mph (45Km/h)

Our Advantages

1. Coswheel was established in 2015, focusing on developing high-quality and high-performance electric self-propelled vehicles Having the most experienced and top-notch electric bicycle designers, all models are independently designed and have design expertise.

2. In 2019, the epoch-making fat tire ebike-T20 was launched. T20 has off-road and commuting functions,the road passing capacity is strong. The extremely cool appearance also won the German Red Dot Award that year.

3.  We have a complete research and development, manufacturing, and sales system, providing a large number of orders to customers worldwide and gaining unanimous recognition and favor. Customizable products can be tailored to customer needs.

4. The main goal is to provide excellent cycling experience for riders, whether you are  commuting, exploring, or RV in the city Travel or mountain sports. Advocate for a low-carbon lifestyle and create a cleaner and greener.

Packing list：

Electric bike*1

Battery*1

Multi-function tool*1

Charger*1

Mudguard*2

Rear rack*1

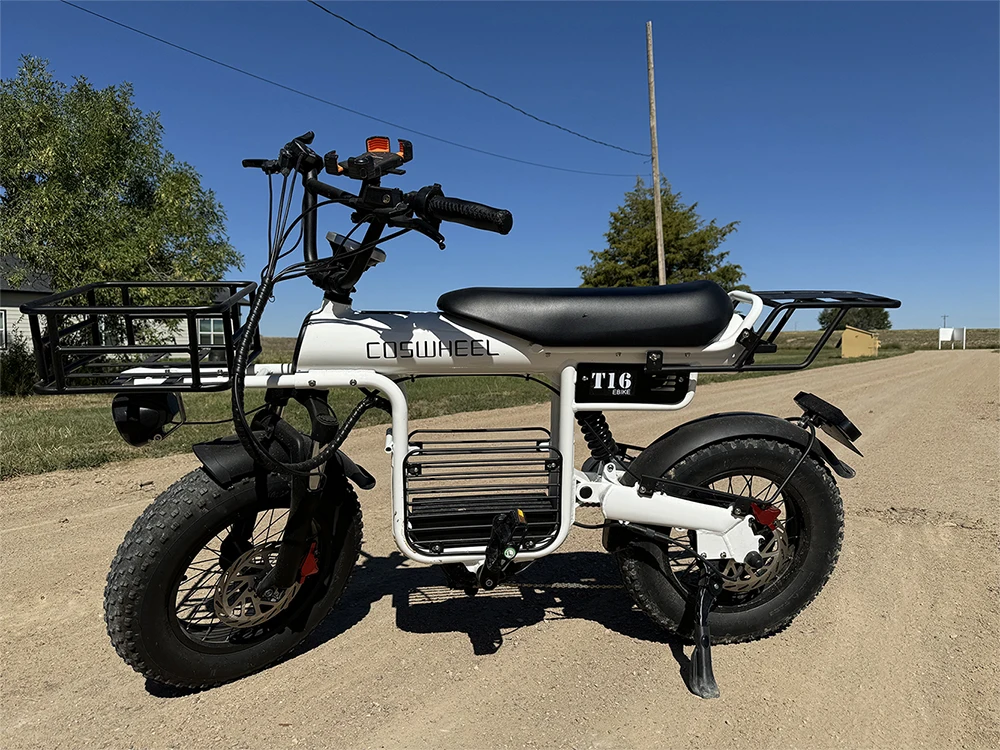

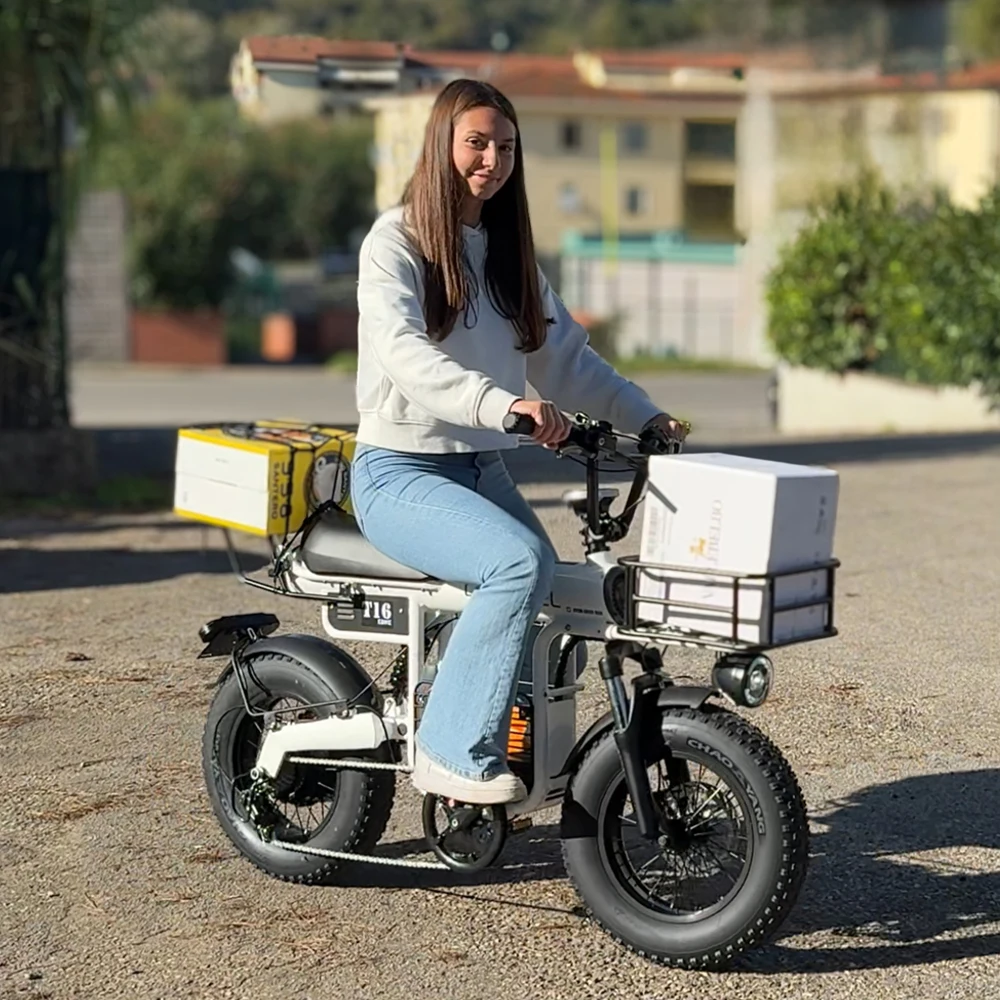

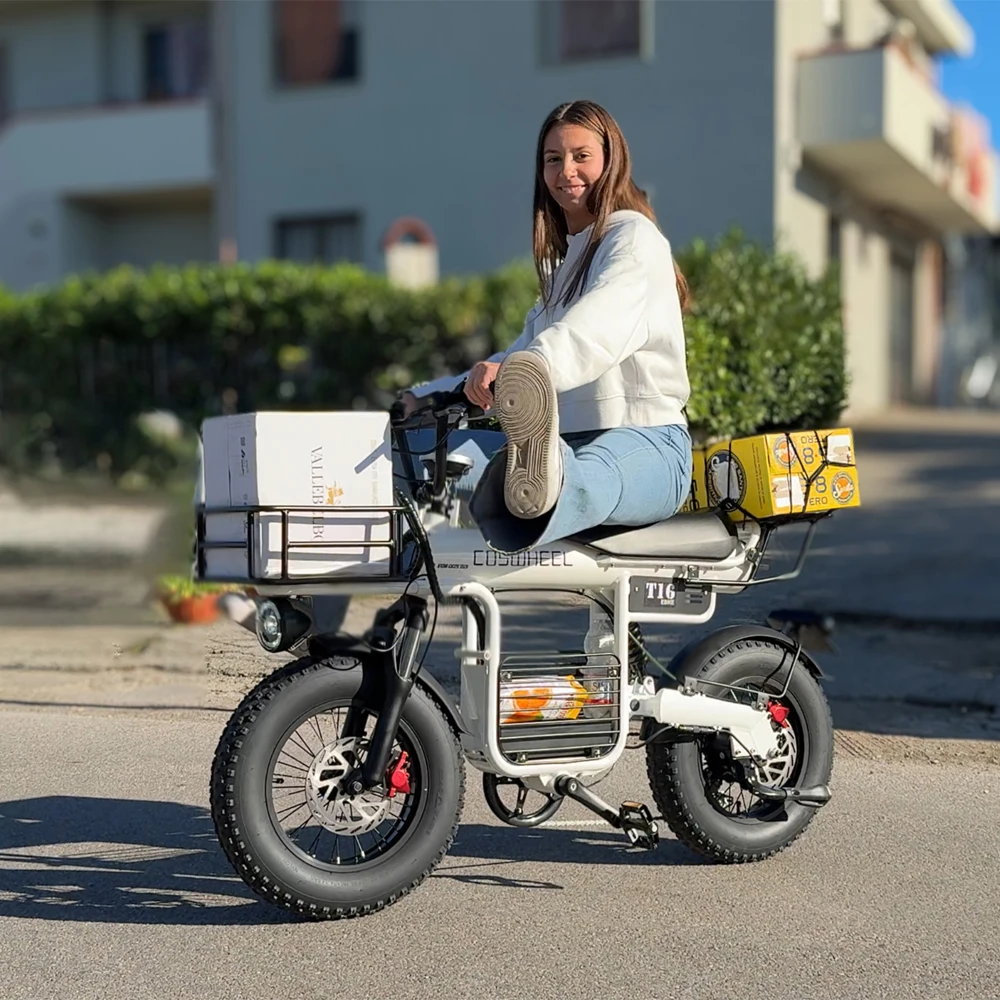

Buyer feedback

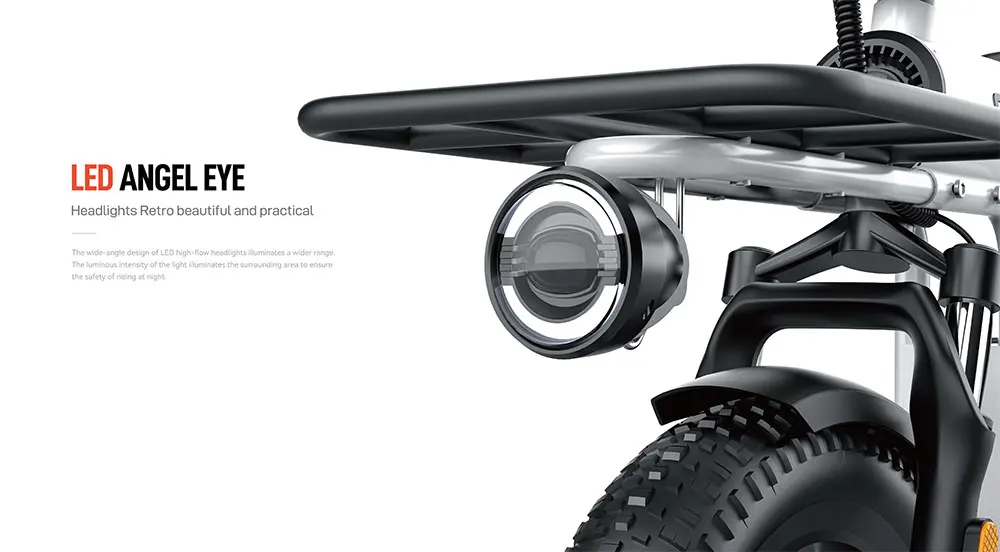

Headlights Retro

The wide-angle design of LED high-flow headlights illuminates a wider range,the luminous intensity of the light illuminates the surrounding area to ensuret the safety of riding at night.

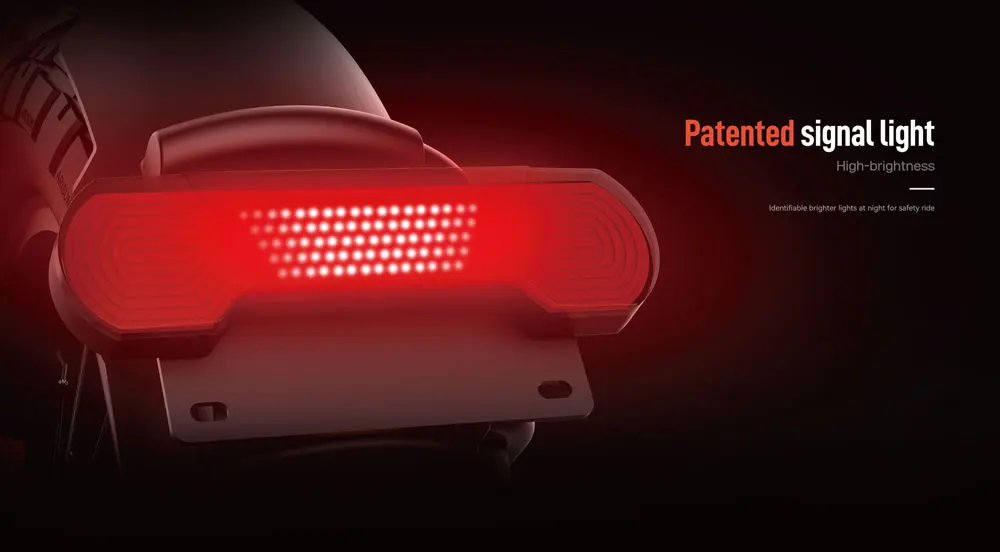

Signal light

Equipped with high-quality front and rear lights to illuminate your way.

LCD SCREEN

New Ul interface, the easy-to-read data display is more accurate;Equipped with
LCD screen sealed and waterproof,Clearly visible at night.

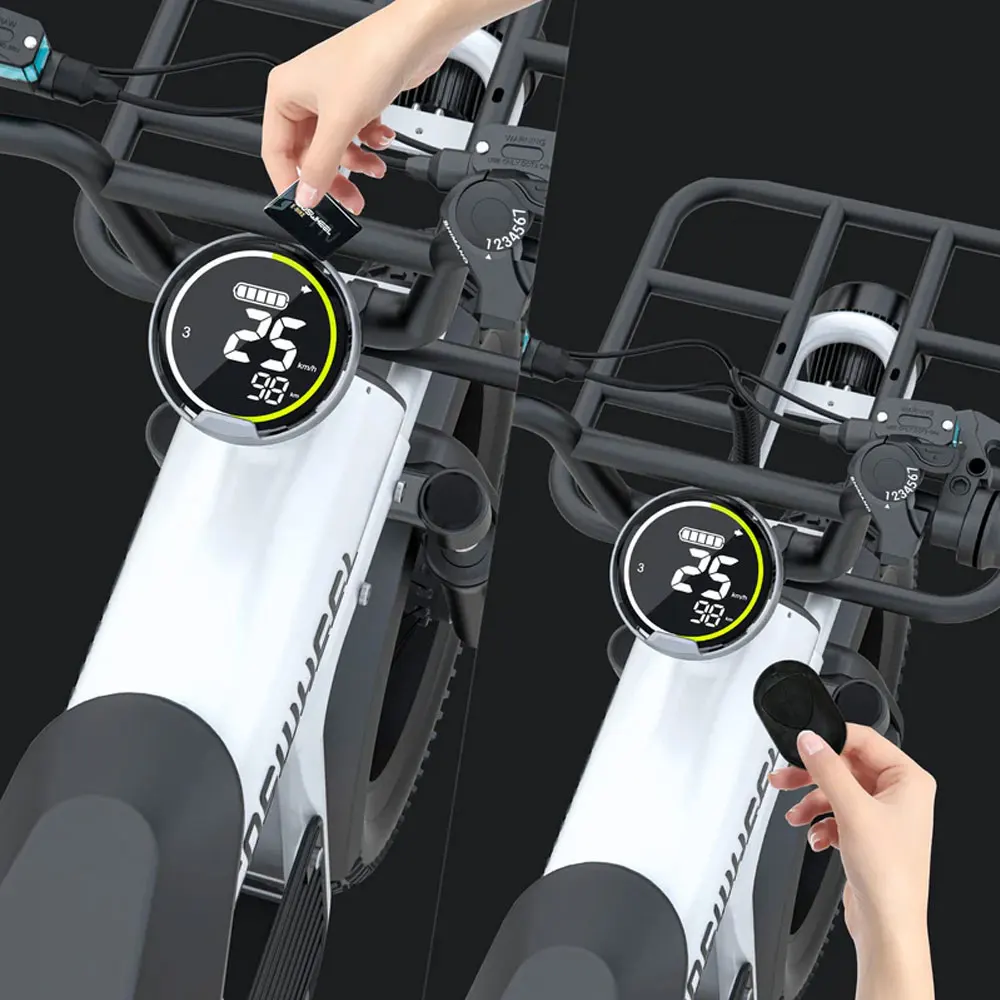

NFC Card / Remote Control Unlock

T16 adopts a new unlocking method, using NFC card and remote control instead of key switch.

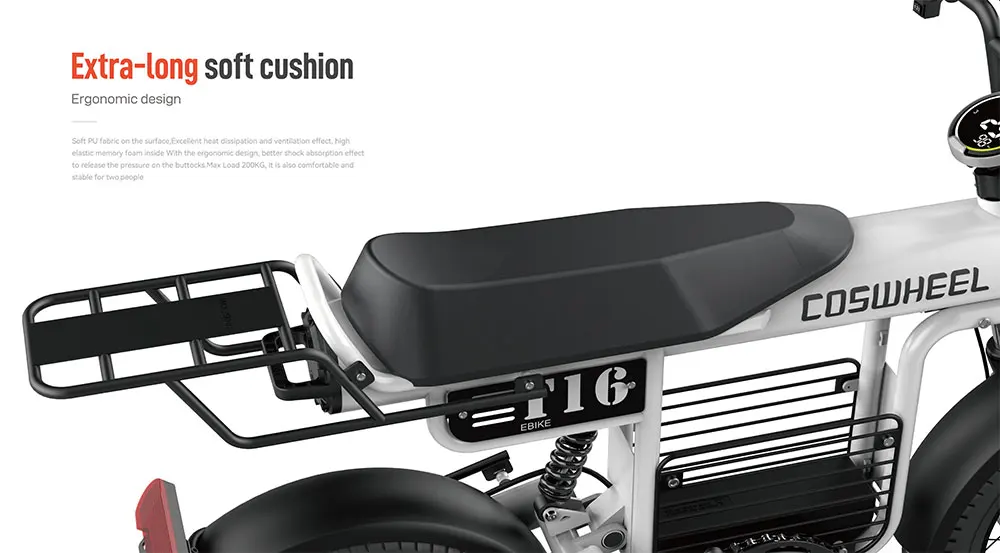

Extra-long soft cushion

Soft PU fabric on the surface,Excellent heat dissipation and ventilation effect, high
elastic memory foam inside With the ergonomic design, better shock absorption effect to release the pressure on the buttocks.Max Load 200KG, It is also comfortable and stable for two people
.

Dual Piston Oil Brake

Double-piston power-off hydraulic brake, equipped with 180MM high-quality brake disc. The brake is soft and powerful, enhancing safety.

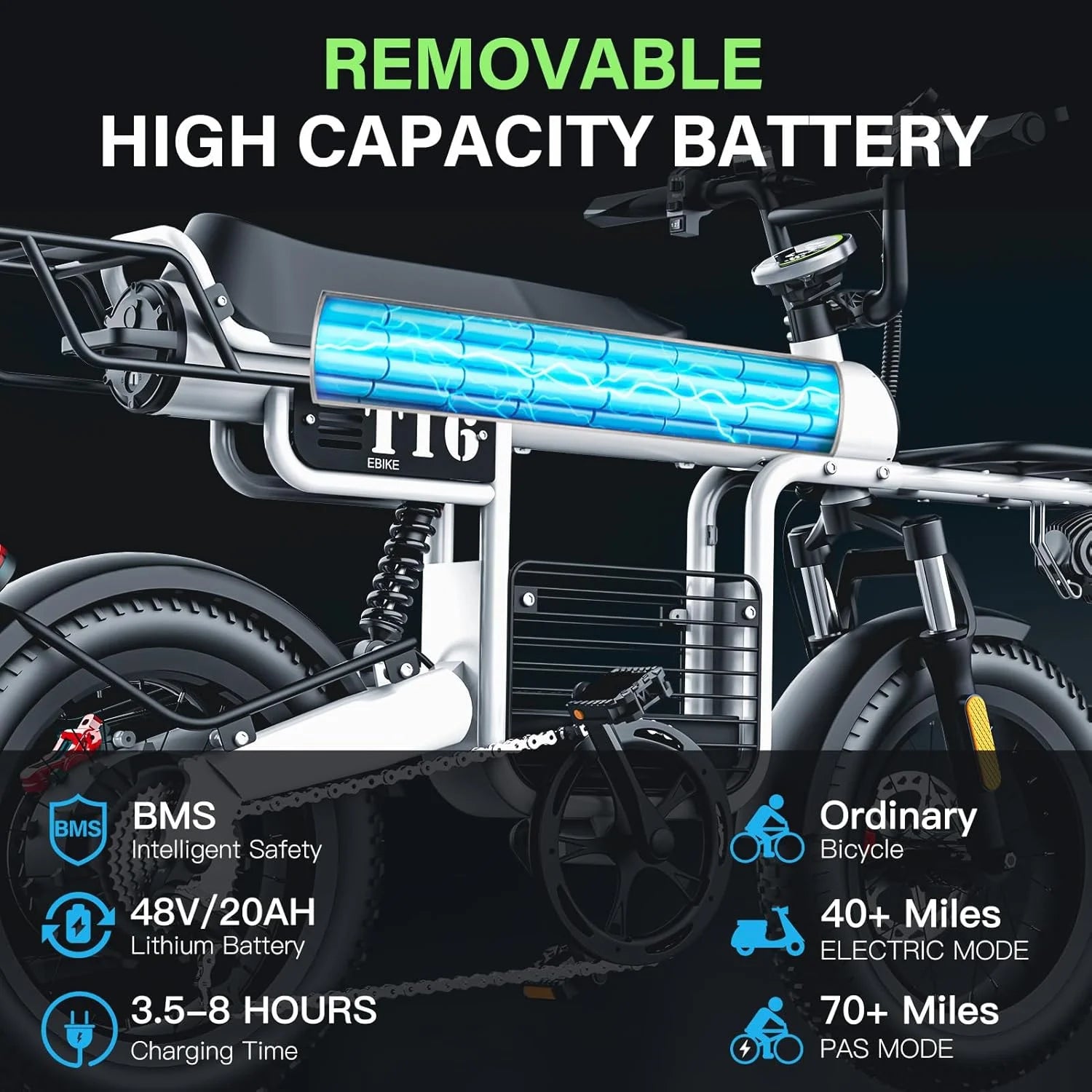

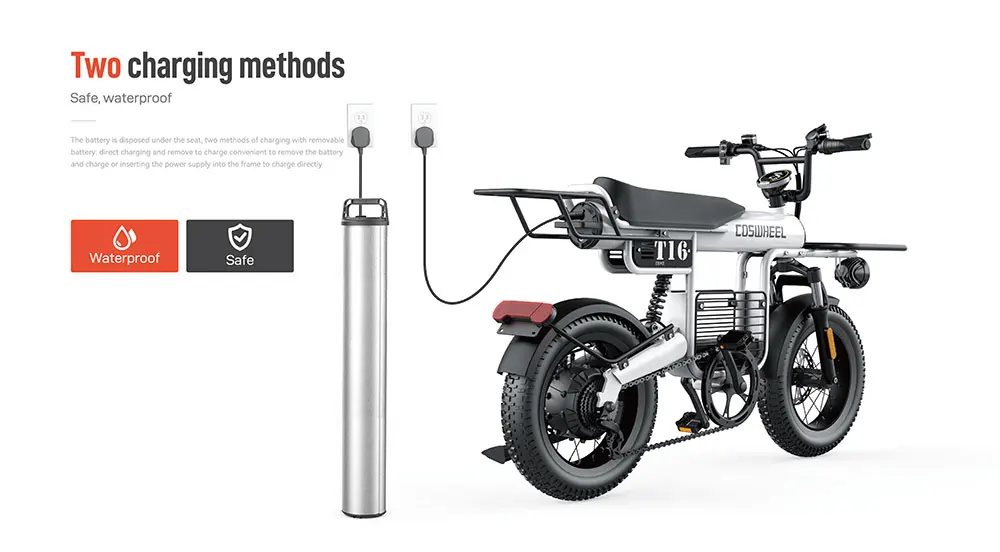

Two charging methods

The battery is disposed under the seat, two methods of charging with removable
battery: direct charging and remove to charge convenient to remove the battery
and charge or inserting the power supply into the frame to charge directly,Safe, waterproof

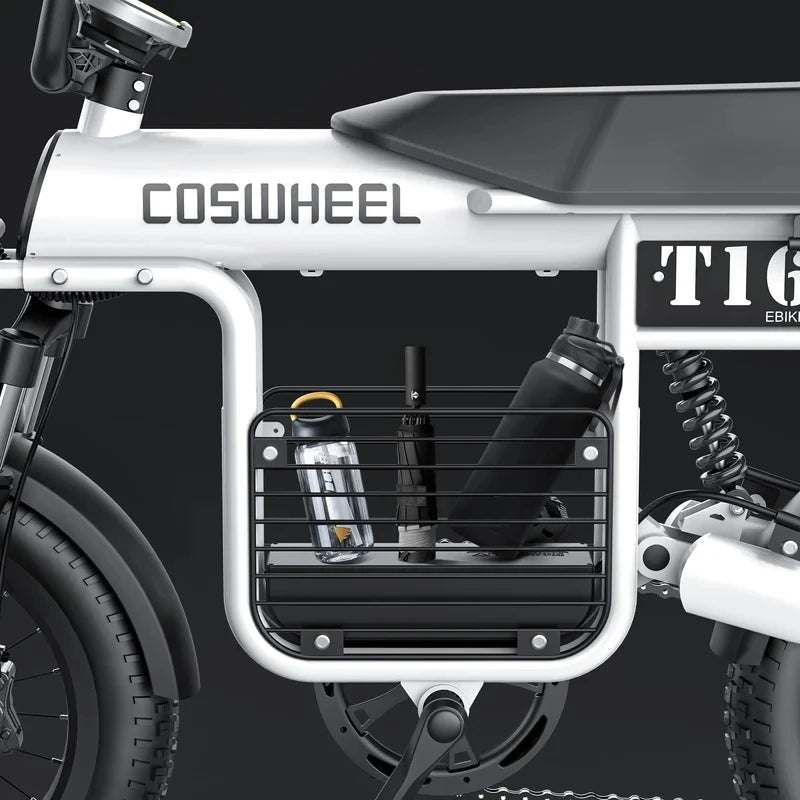

Optional fittings

Optional addition Front basket and Rear
basket
